Product Details:
|
| Color: | Black | Type: | Cable Accessories |
|---|---|---|---|
| Material: | EPDM | Application: | Low & Middle Voltage |
| High Light: | EPDM Cold Shrink Cable Accessories,20kv Cold Shrink Cable Accessories,20kv screened separable connectors |
||

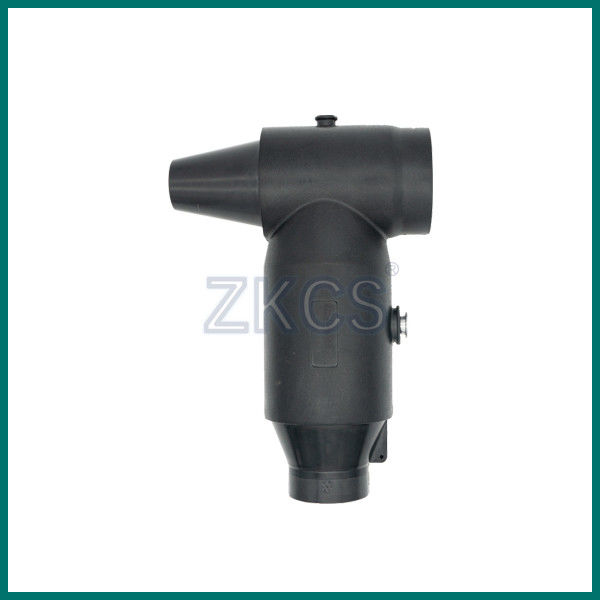

Cable Accessories Of 20kv EPDM Front Plug For Electrical Cabinet According To EN Standard
The rear plug of RY KHT-24(II)/630 Type II touchable cable is a fully insulated, fully sealed, fully shielded live touchable cable connector, which is formed by one-time injection molding of imported high-quality EPDM rubber.
Applicable fields:
The product is small and compact, and the interface size complies with EN50180/50181 standard C interface, which can be used for 24kV (12/20, 18/20) voltage level ring network cabinets, branch boxes and other matching front plugs.
Electrical Performance
| Description | Technical Parameters |
| Rated voltage | 20kV |
| Rated current | 630A |
| 5 minutes power frequency withstand voltage | 81 kV |
| Partial Discharge | Q≤10pC@30 kV |
| Lightning impulse withstand voltage | 170 kV |
| Thermally stable current | 22.6kA,2s |
| Dynamic stability current | 80kA,10ms |
| Guideline:GB/T12706.4,IEC60502.4 | |
Product Dimensions Ref:
