Product Details:
|
| Color: | Black | Type: | Cable Accessories |
|---|---|---|---|
| Material: | EPDM | Application: | Low & Middle Voltage |
| High Light: | EPDM Cold Shrink Cable Accessories,34kv Cold Shrink Cable Accessories,EPDM touch proof termination kit |
||

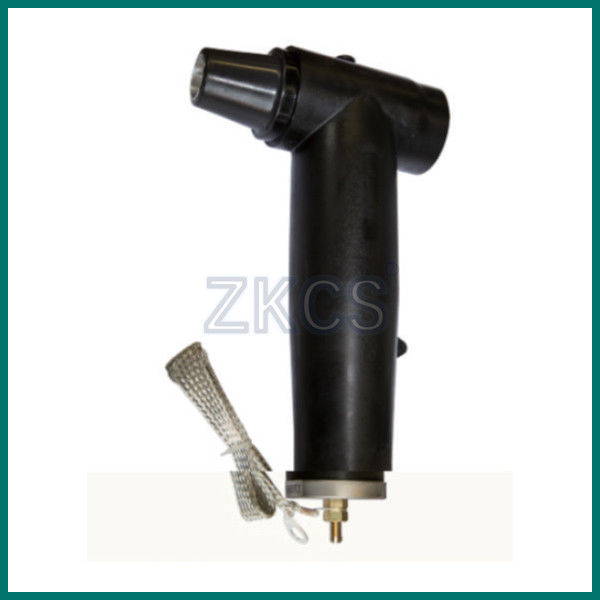

Cable Accessories Of Separator For 34kv Touchable Rear Head Arrester
RY KBLQ-34/85, 26/66 touchable rear head arrester is a fully insulated, fully sealed, fully shielded live and touchable structure, using imported high-quality EPDM rubber for one-time injection molding, waterproof and moisture-proof.
Applicable fields:
The product is small and compact. It is an ideal overvoltage protection device in 24KV power distribution equipment, and is suitable for supporting use in ring network cabinets and branch boxes.
34/85 Model is suitable for 18/20kV voltage grade, 26/66 is suitable for 12/20kV voltage rating.
Electrical Performance
| Description |
34/85 Technical Parameters |
26/66 Technical Parameters |
| Rated voltage Ur | 34kV | 26kV |
| Continuous operating voltage Uc | 27.2kV | 20.8kV |
| Nominal discharge current In | 5kA | 5kA |
| DC 1mA reference voltage | ≥48kV | ≥37kV |
| U1mA 75% leakage current | ≤50μA | ≤50μA |
| 2ms square wave pass flow | 150A | 150A |
| 5kA impact residual pressure (peak value) | 85kVp | 66kVp |
| Guideline :GB/T11032,12706.4；IEC60099.4 | ||
Product Dimensions Ref:
