Product Details:
|
| Type: | Cable Accessories | Material: | Silicone Rubber |
|---|---|---|---|
| Color: | RED/BLACK/GREEN/YELLOW/WHITE | Application: | Wire Connecting |
| Product Name: | EPDM Cold Shrink Cable Accessories | Usage: | Connecting Cable |
| High Light: | Middle Voltage Cold Shrink Cable Accessories,Cold Shrink Cable Accessories 630A,Touch Proof Termination Kit 35kV |
||
| Color: | Black | Type: | Cable Accessories |
|---|---|---|---|
| Material: | EPDM | Application: | Low & Middle Voltage |
| High Light: |
EPDM Cold Shrink Cable Accessories,630ACold Shrink Cable Accessories,EPDM touch proof termination kit |
||

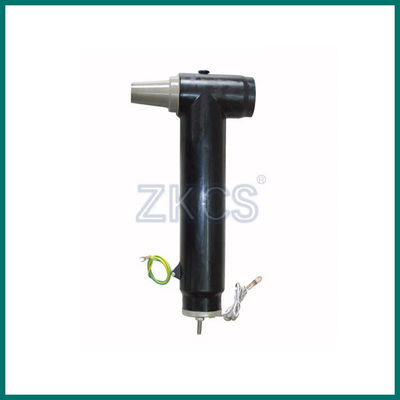

Cable Accessories Of Separator For 34kv Touchable Rear Head Arrester
The 35kV followed by a lightning arrester provides overvoltage and lightning protection for the 35kV power system. The application of non-linear resistors for arrester resistors has the advantages of low residual voltage, large current capacity, and flat steep waves. Ensure the normal operation of the power system.
Applicable fields:
The product is small and compact. It is an ideal overvoltage protection device in 24KV power distribution equipment, and is suitable for supporting use in ring network cabinets and branch boxes.
34/85 Model is suitable for 18/20kV voltage grade, 26/66 is suitable for 12/20kV voltage rating.
Electrical Performance
| Description |
34/85 Technical Parameters |
26/66 Technical Parameters |
| Rated voltage Ur | 34kV | 26kV |
| Continuous operating voltage Uc | 27.2kV | 20.8kV |
| Nominal discharge current In | 600A | 600A |
| DC 1mA reference voltage | ≥48kV | ≥37kV |
| U1mA 75% leakage current | ≤50μA | ≤50μA |
| 2ms square wave pass flow | 150A | 150A |
| 5kA impact residual pressure (peak value) | 85kVp | 66kVp |
| Guideline :GB/T11032,12706.4；IEC60099.4 | ||
Product Dimensions Ref:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping.
