Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROHS
Model Number: ZK2028
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: negociatable
Packaging Details: catons
Delivery Time: 25da
Payment Terms: Western Union, T/T, L/C

3 Meter Up To 35KV Waterproof Insulation Tape For Antenas And Peep Wires

Description
Color: OEM Material: Butly
Size: 51mm*1.65mm*3m UV Aging: Yes
Application: Antennas And Peep Wires Voltage: 35KV
Funcation: Insulation And Seaing Product Name: Waterproof Insulation Tape For Antenas And Peep Wires
High Light:

Waterproof insulation tape

,

OEM waterproof insulation tape

,

3meter waterproof insulation tape for antenas and peep wires

Product name:

3 Meter Up To 35KV Waterproof Insulation Tape For Antenas And Peep Wires





Applications

1.Use for insulation, filling, and moisture sealing in splices of all types of power cables and optical telecommunication cables.
For PRIMARY INSULATION UP TO 35KV,
2.Use for insulating and moisture sealing on the bus bar.
3,sealing protection of overhead insulated wire joints,repair of cable outer sheath.



Product pictures

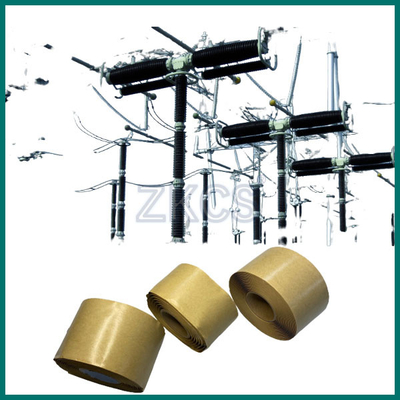

3 Meter Up To 35KV Waterproof Insulation Tape For Antenas And Peep Wires 0

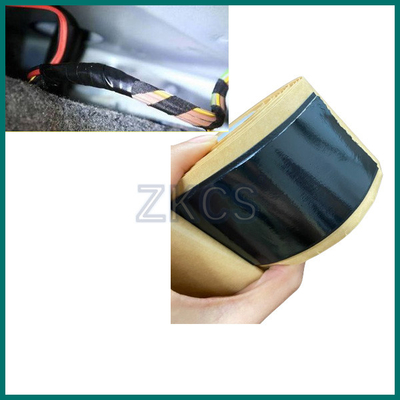

3 Meter Up To 35KV Waterproof Insulation Tape For Antenas And Peep Wires 1



Waterproof Insulation Tape

It is composed of self-adhesive rubber and insulating mastic. It has excellent adhesive and electrical properties, chemical resistance, water and moisture resistance. It is suitable for the insulation and waterproof sealing of various solid medium cable joints, as well as the moisture protection of cable sheaths.



Product Model No. Normal Specification
Waterproof Insulation Tape ZK2028 51mm*1.65mm*3m
51mm*1.65mm*1m



Technical parameters
Performance Typical data Test method
Tensile strength 1.29MPa ASTM D 4325
Elongation at break 750-970% ASTM D 4325
dielectric strength 22.62-26.5KV/mm ASTM D 4325
Adhesion(180°,steel plate) 78.4N/50mm ASTM D 1000
Ozone aging Pass ASTM D 4388
UV aging Pass ASTM D 4388
Xenon lamp Pass ASTM D 4388
