Ethylene Propylene Rubber high voltage splicing tape with high electrical properties

Ethylene Propylene Rubber high voltage splicing tape with high electrical properties
Ethylene Propylene Rubber high voltage splicing tape with high electrical properties
Ethylene Propylene Rubber high voltage splicing tape with high electrical properties Ethylene Propylene Rubber high voltage splicing tape with high electrical properties Ethylene Propylene Rubber high voltage splicing tape with high electrical properties Ethylene Propylene Rubber high voltage splicing tape with high electrical properties

Large Image :  Ethylene Propylene Rubber high voltage splicing tape with high electrical properties

Product Details:
Place of Origin: China
Brand Name: Customizes
Certification: ISO9001
Model Number: ZK2023 EPR High Voltage Insulation Tape
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiate
Packaging Details: carton packing
Delivery Time: 3-5days

Ethylene Propylene Rubber high voltage splicing tape with high electrical properties

Description
Color: Customized Application: An Insulation For Low-voltage Application As Well As An Insulation For Splices Up To 69.000 Volts
Place Of Origninal: China Material: Ethylene Propylene Rubber
Size: 19;25.4;38;54mm Thickness: 0.76mm
High Light:

EPR insulation tape

,

Self-amalgamating EPR tape

,

Rubber Splicing Tape

Product name:



Ethylene Propylene Rubber high voltage splicing tape with high electrical properties



Ethylene Propylene Rubber high voltage splicing tape​ description:



Ethylene Propylene Rubber high voltage splicing tape with high electrical properties is a highly conformable, self-fusing EPR (Ethylene Propylene Rubber) based, high voltage splicing tape. It is a nonvulcanizing, shelf-stable tape with high
electrical properties. It can be used as an insulation for low-voltage application as well as an insulation for splices up to 69.000 volts.



Ethylene Propylene Rubber high voltage splicing tape Features:



●Made of highly conformable EPR material, self-amalgamating, non-vulcanizing
●With a liner, which can be easily removed and won’t stick to the tape while using the tape
●Excellent and stable electrical property, Good physical property
●Excellent Insulation for low as well as high voltage up to 69KV
●Good compatibility with all solid dielectric cables
●Can be used to splice and terminate cables whose emergency overload temperatures can reach 130°C

●Good aging resistance and long shelf life



Product Normal Specification:





Product Model No. Normal Specification



ZK2023

High Voltage Insulation Tape

1 19mm*0.76mm*9.15m
2 25.4mm*0.76mm*5m
3 38mm*0.76mm*9.15m
4 51mm*0.76mm*9.15m





Non flame retardant self-adhesive rubber tape technical parameters



Technical parameters
Performance Typical data Test method
Tensile strength 3.83MPa ASTM D 4325
Elongation at break 850% ASTM D 4325
dielectric strength 35.16KV/mm ASTM D 4325
volume resistivity 3.5×1015Ωcm ASTM D 4325
Heat aging Pass ASTM D 4325
Ozone aging Pass ASTM D 4325
UV aging Pass ASTM D 4325
Xenon lamp Pass ISO 4892-2

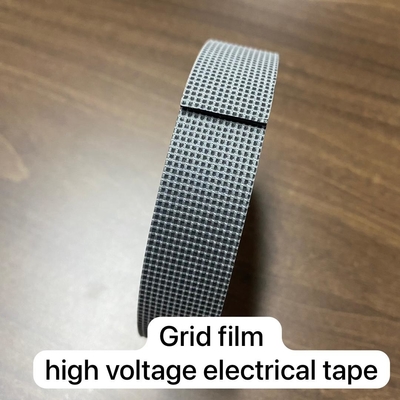

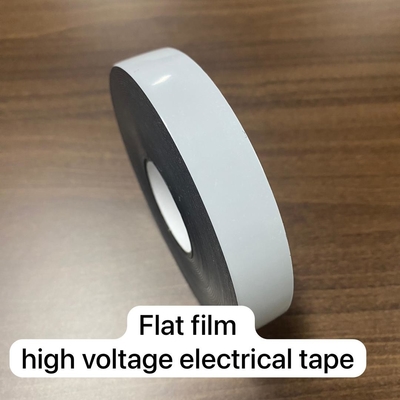

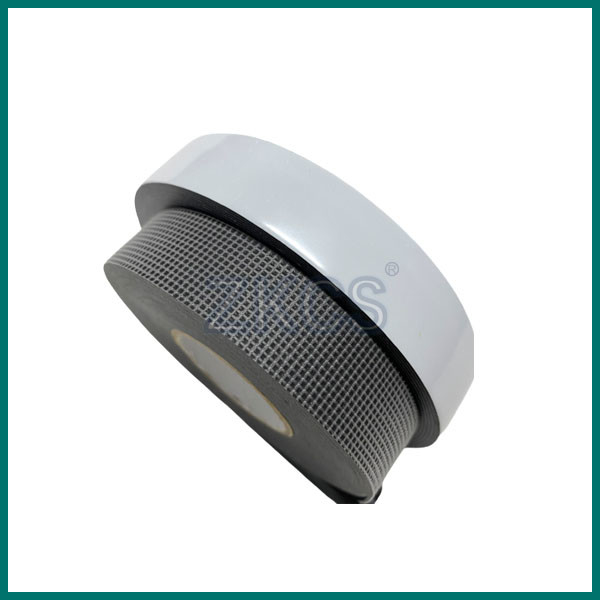

Product pictures for reference.



Ethylene Propylene Rubber high voltage splicing tape with high electrical properties 0Ethylene Propylene Rubber high voltage splicing tape with high electrical properties 1Ethylene Propylene Rubber high voltage splicing tape with high electrical properties 2







For your information:

Trade terms
FOB, EXW, CIF, DDU, DDP
Payment terms
T/T, L/C, Negotiable
MOQ
500
Supply capability
300000 pieces per month
Lead time
usually 10 working days
Shipment
Express, air, sea
Port
 Shenzhen
Sample availability
Yes
Sample time
usually 3-5 days
Packaging
Normal: Plastic bag & Carton & Pallet
Special: Customized packing
