Product Details:
|
| Material: | EPR And Butyl Rubber | Width: | 51mm |
|---|---|---|---|
| Length: | 3m | Thickness: | 1.65mm |
| Color: | Black | Type: | Water Proof |
| Temperature: | 130℃ | Application: | Cable Waterproof |
| High Light: | Mastic Tape Cold Shrink Cable Accessories,Butyl Rubber Mastic Tape Waterproof,Cold Shrink Cable Waterproof Mastic Tape |
||

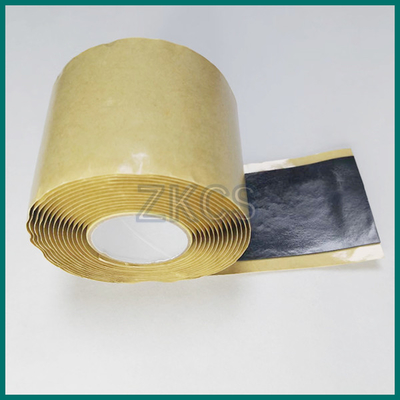

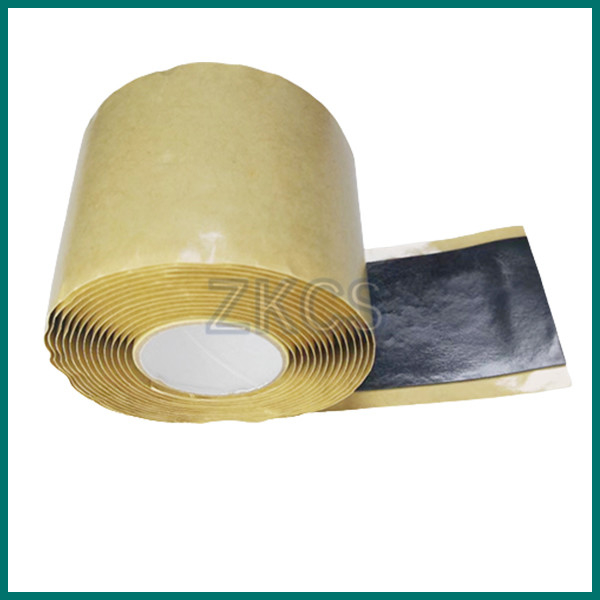

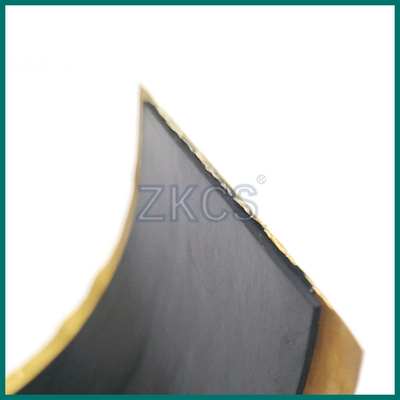

Waterproof Mastic Tape Strong Adhesion To Copper, Aluminum, And Cable Jackets
| Product name |
Length (±0.1)m |
Width (±0.1)mm |
Thickness (±0.05)mm |
Parameters |
| High voltage insulation sealing rubber tape | 3 | 51 | 1.65 | Please see below chart |
Waterproof Mastic Tape technical parameters:
| No. | Item | Test Standard | Unit | Result |
| 1 | Tensile Strength | ASTM D4325 | Mpa | 1.2 |
| 2 | Elongation at Break | ASTM D4325 | % | 960 |
| 3 | Water absorption | ASTM D570 | % | 0.16 |
| 4 | DielectricStrength | ASTM D1000 | kV/mm | 25 |
| 5 | Volume resistivity | ASTM D257 | Ω.cm | 8.9x1015 |
| 6 | Adhesion (180° Steel plate) | ASTM D1000 | N/50mm | 78 |
| 7 | Heat exposure | ASTM D4388 | °C | 130 |
| 8 | Ozone ageing | ASTM D4388 | Ok | |
| 9 | UV ageing | ASTM D4388 | Ok | |
| 10 | Xenon ageing | ASTM D4388 | Ok |
Features:
Waterseal mastic tape is made from EPR and butyl rubber. It has strong adhesion to copper, aluminum, and cable jackets. It provides excellent waterproofing performance and temperature stability at 90℃,and withstanding of overload temperature up to 130℃. It good seal features.
Application:
| No | Items |
| 1 |
Use for insulating, filling and moisture sealing in splices of all types of power cables and optical telecommunication cables. |
| 2 |
Use for insulation and moisture sealing irregular shaped bus bar bolted connections |
| 3 |
Use for moisture sealing high or low voltage junction boxes and irregular splices |
| 4 |
Moisture seal for power cable and wire connections |
| 5 | Moisture seal for service drops |
| 6 | Moisture seal for ground wire and rod connections |
