Product Details:
|
| Material: | EPDM | Color: | Black Or Grey |
|---|---|---|---|
| Length: | Customized | Name: | EPDM Cold Shrink Tube |
| Application: | Insulation Protection | Product Name: | Waterproof EPDM Cold Shrinkage Splice |
| Packing: | Carton | Free Samples: | Yes |
| Highlight: | EPDM Cold Shrinkage Splice,EPDM Cold Shrinkage Splice Moisture Sealing,Waterproof EPDM Cold Shrinkage Splice |
||
Product name:
Waterproof EPDM Cold Shrinkage Splice For Telecommunication Industry
Description:

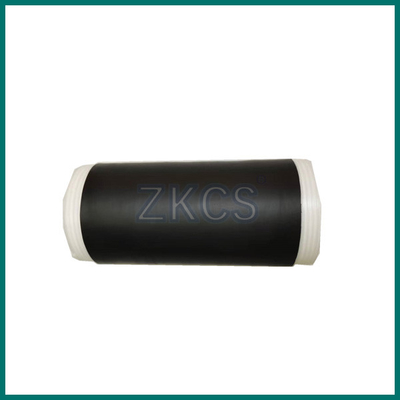

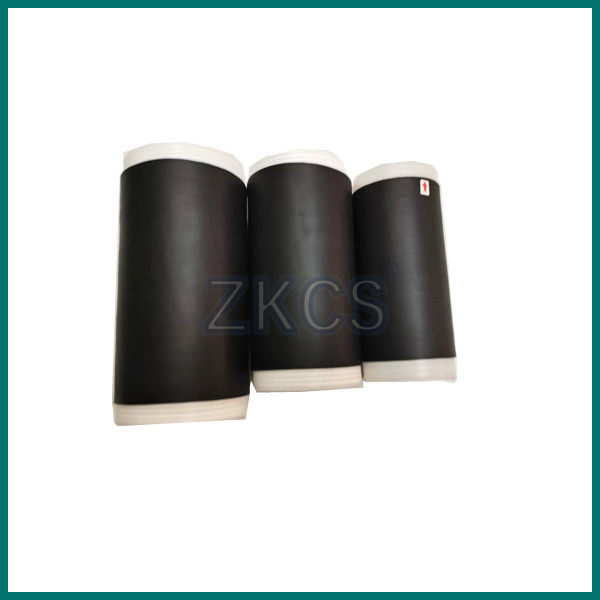

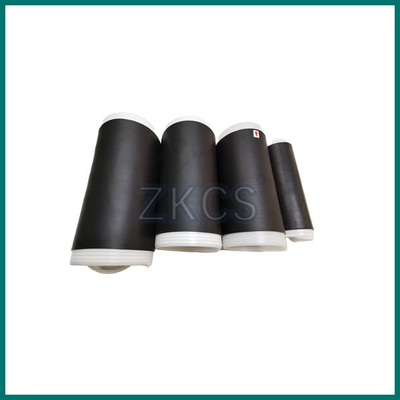

ZK industrial EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation.
We have more than ten years experience of cold shrink tube line with professional technical knowleage and good performance.
Product Features:
1:Provides Excellent Physical Protection and Moisture Sealing for Telecom Connectors and cables.
2: Perfect Application for Remote Radio Unit Connections
3:Can be Installed with Less Room than Clam Shell Enclosures Cable Jacket and Sheath Repairs
4:Corrosion Protection for Fittings and Couplings
5:Protect Connectors from Weather, Moisture, UV, Ozone, Dust and Fungus
Introduction:
EPDM cold shrink tube: applied in electrical power industry, telecommunication industry or other tool product handle, eg. bicycle handle etc. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Installation Steps:
Simple installation requires only the installer’s hands.
Excellent weathering properties.
Excellent abrasion resistance EPDM cold shrink tube
