High-performance Cold Shrink Termination for Power Engineering

High-performance Cold Shrink Termination for Power Engineering
High-performance Cold Shrink Termination for Power Engineering High-performance Cold Shrink Termination for Power Engineering High-performance Cold Shrink Termination for Power Engineering High-performance Cold Shrink Termination for Power Engineering

Large Image :  High-performance Cold Shrink Termination for Power Engineering

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROSH
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.8-2.2USD/PCS
Packaging Details: 50pcs or 100pcs/carton
Delivery Time: 20-30days after receiving 40% deposit
Payment Terms: D/A,D/P,T/T
Supply Ability: 200000pcs/month
Contact Now Chat Now

High-performance Cold Shrink Termination for Power Engineering

Description
Color: White,Black Voltage: 1-36kV
Feature: Waterproof,seal Dielectric Strength: 20kV/mm
Operation Temperature: -60℃ To +200℃ Temperature: -60℃-90℃
Breakdown Voltage: 20kV Type: Cold Shrink Tube
Packing: Carton Uv Resistant: Yes
Highlight:

Active Breathing Seal

,

All-Weather Durability

,

High Mechanical Damage Resistance

Product name

High-performance Cold Shrink Termination for Power Engineering


Product description

This cold shrink termination is a professional and upgraded cable insulation accessory specially designed for medium and low voltage power transmission and distribution projects. As a core power fitting, this cold shrink termination abandons the defects of traditional heat-shrink and ordinary cable terminals, adopting integrated high-quality silicone molding process. This cold shrink termination features a unique optimized umbrella skirt structure and seamless expansion technology, perfectly solving common  points of outdoor cable terminals. Different from ordinary accessories, this cold shrink termination integrates multiple core functions including insulation, anti-creepage, waterproof and anti-aging. This durable cold shrink termination requires no professional tools for installation, realizing fast and labor-saving construction. With complete size specifications, this cold shrink termination covers all conventional cable cross-section models, fully adapting to power distribution stations and transmission tower engineering scenarios, and providing long-term stable safety protection for outdoor cable terminals.


    Features:

This high-performance cable termination accessory has excellent structural and physical properties. It features zero-trace expansion, with no longitudinal dents on the inner wall after expansion, which effectively eliminates the creepage hidden danger of the cable interface. The unique large and small alternating umbrella skirt structure gives the product strong self-cleaning ability, which can effectively prevent the formation of conductive channels between skirt ends in heavy rain and harsh weather. The outdoor dedicated model is composed of 9 umbrella skirts, with a maximum outer diameter of 150mm, forming a sufficient safe creepage distance. In addition, the product has outstanding tear resistance, weather resistance, UV resistance and ozone aging resistance, with stable radial pressure and excellent rebound sealing performance, which can resist external mechanical damage and adapt to long-term outdoor harsh environment operation.

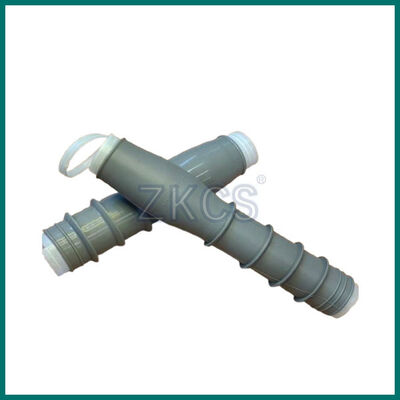

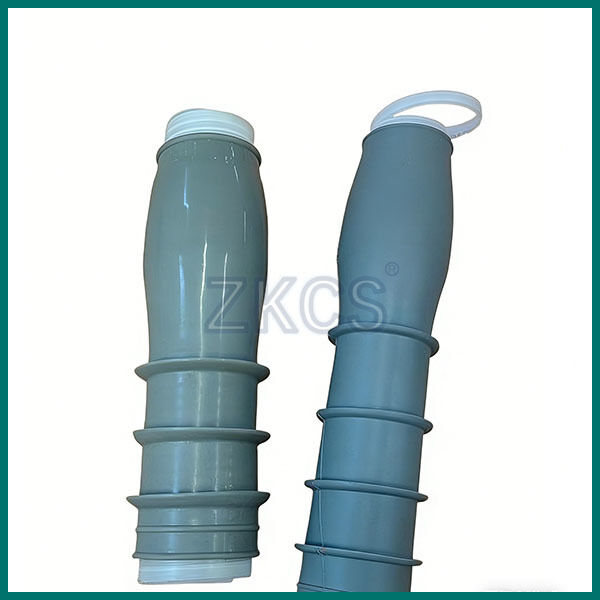

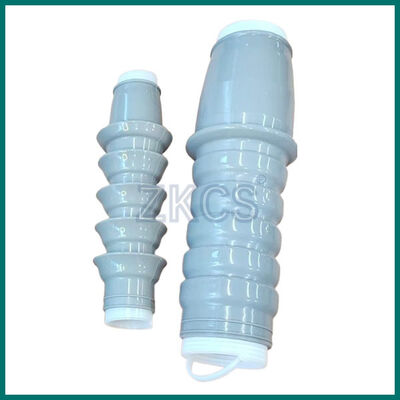

24KV indoor cold shrink termination Picture

High-performance Cold Shrink Termination for Power Engineering 0

High-performance Cold Shrink Termination for Power Engineering 1

High-performance Cold Shrink Termination for Power Engineering 2


Applicable scope

Widely used in core scenarios such as medium and low voltage distribution station hubs and power transmission tower pole projects, it is suitable for various overhead power transmission lines and outdoor cable terminal insulation protection scenarios. With a super full size range, it supports cable cross-sectional areas including 25-50mm², 50-95mm², 70-120mm², 120-185mm², 150-240mm², 240-400mm² and 300-400mm², covering most medium and low voltage power engineering application needs.

Rubber Typical Properties


Properties Test Method Typical Value
Color / Black
Ultimate Tensile ASTM D412-75 9.0MPa
Ultimate Elongation ASTM D412-75 750%
Tear Resistance ASTM D624C-73 30KN/m
Fungus Resistance ASTM G21 28 days exposure No Growth
Dielectric Strength ASTM D149-75 @1.75 Original 21KV/m
7days in water at 90℃ 20.5KV/m
Volume resistance ASTM D257 3.4×1015Ohm.cm


FAQ
1. Who are we?
We are professional in cold shrink industry,which including silicone/EPDM/inner mastic cold shrink tube and cold shrink cable aceesories .
ZKCS are always persuit good quality and striving for upgrade products.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.Q: What are the advantages of this cold shrink termination compared with traditional products?

A: It has seamless expansion design and optimized shed structure, better anti-creepage and self-cleaning performance, plus simpler installation.

4.Q: What cable sizes does the cold shrink termination support?
A: It fits cable cross-sections from 25mm² to 400mm², covering most common specifications for medium and low voltage power projects.
