Product Details:
|
| Material: | EPDM | Color: | Black Or Grey |
|---|---|---|---|
| Length: | Customized | Name: | EPDM Cold Shrink Tube |
| Product Name: | Insulation Protection EPDM Cold Shrink Tube Sleeve 1KV IP68 Coax Cable | Packing: | Carton |
| Free Samples: | Yes | Sample Time: | 5-7days |
| Highlight: | Coax Cable EPDM Cold Shrink Tube,IP68 EPDM Cold Shrink Tube |
||
Product name:

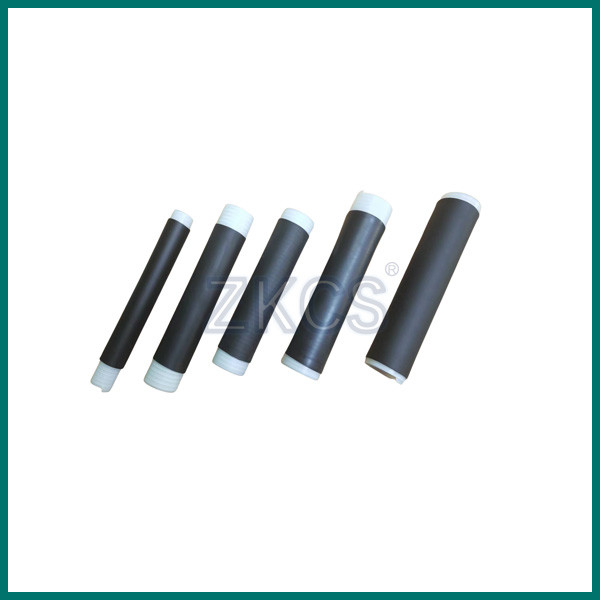

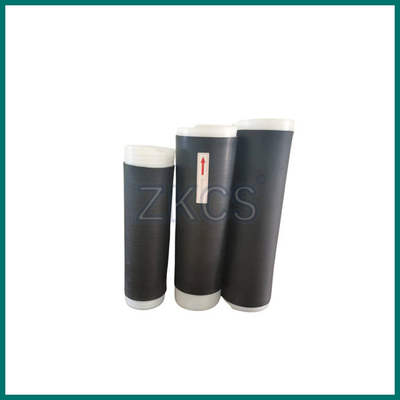

Insulation Protection EPDM Cold Shrink Tube Sleeve 1KV IP68 Coax Cable
Description:
Hengyang ZK industrial has been engaged with cold shrink line for many years,which has safer business
way and good quality of products,we will be your frist choice for cold shrink material supplier.
Applications
1.Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices
2.Meets ANSI C119.1, directly buriable or submersible
3.For indoor, outdoor and overhead use
4.Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus bar
5.Insulation of secondary splices copper or aluminum conductors
6.Relocation of service
7.Dig-in repairs, sheath repairs
8.Insulation of inline conductor transition connectors
9.Sealing of coax cables with Type N or 7/16 DIN connectors on wireless communication towers
Introduction:
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Here you can find cold shrink tubes made of different materials for base stations, silicone, EPDM and Silicone with Bilateral Built-in Mastic. They can be used to connect cable to cable or connect cable to device for waterproofing. 1/4" , 3/8" , 1/2" s, 1/2", 7/8”, LMR195 coaxial cable to 4.3-10, 4.1-9.5, 7/16DIN,
