Product Details:
|
Material: | EPR | Width: | 19mm |
---|---|---|---|
Length: | 9.15m | Thickness: | 0.76mm |
Color: | Black | Type: | Self-fusing |
Temperature: | 130°C | Performance: | Waterproof |
Highlight: | High Voltage Self Fusing Insulation Tape,0.76mm Self Fusing Insulation Tape,EPR High Voltage Insulation Tape |

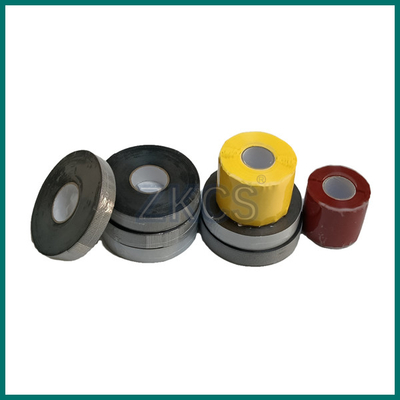

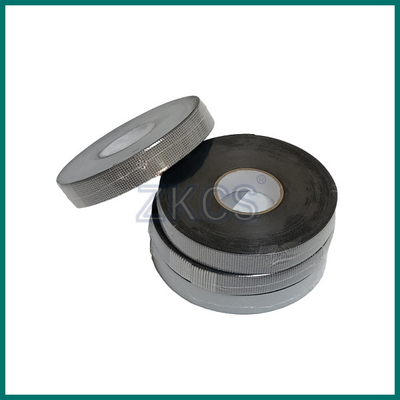

EPR Self Fusing Insulation Black Tape Cable Insulation Protection Type High Voltage Insulation Tape
Product name |
Length (±0.1)m |
Width (±0.1)mm |
Thickness (±0.05)mm |
Parameters |
High voltage insulation EPR self fusing tape | 9.15 | 19 | 0.76 | Please see below chart |
High voltage insulation sealing rubble tape technical parameters:
No | Items | Test standards | Unit | Standard result |
1 | Tensile strength | ASTM D4325 | Mpa | ≥1.8-3.8 |
2 | Elongation at Break | ASTM D4325 | % | ≥650-850 |
3 | Power frequency breakdown strength | ASTM D4325 | KV/mm | ≥25KV/mm |
4 | Volume resistance | ASTM D4325 | Ω.cm | ≥1.0*1015 |
5 | Dielectric coefficient | ASTM D4325 | ≤5 | |
6 | Dielectric loss angle tangent | ASTM D4325 | ≤0.05 | |
7 | Instantaneous temperature limit | ℃ | 130 | |
8 | Color | Black | ||
9 | Suitable volage | kv | Up to 69 |
Features of EPR Tape:
Polyethylene (high and low density).
Cross-linked polyethylene (XLPE).
Polyvinyl chloride (PVC).
Butyl rubber.
Application:
No | Items |
1 | Electrical maintenance, Insulation, Sealing |
2 | Jacketing of indoor terminations |
3 | Bus bar insulations and corrosion protection |
4 | Jacket repair and restoration in all types of cable |
5 | End sealing high-voltage cables. |
6 | Building stress cones |
7 | Moisture sealing electrical connections |
