Product Details:
|
| Material: | Silicone | Color: | Black Or Grey |
|---|---|---|---|
| Length: | Customized | Name: | Cold Shrink Tube |
| Application: | Insulation Protection | Product Name: | Silicone Cold Shrink Tube Weatherproof Kit Insulating Tube |
| Packing: | Carton | Free Samples: | Yes |
| Highlight: | Silicone Cold Shrink Tube,Silicone Cold Shrink cable splice,Cold Shrink Tube for electric communication |
||
Product name:
Tight Seal And Resilient Cold Shrink Tube For Electrical Connections
Description:
Rubber Cold Shrink Tube, is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.
Features:
1:Simple installation,requires no special tools.
2:High effective long life.
3:Good tracking resistance and electric corrosive resistance.
4:Good thermal stability.
5:Seals tight,retains its resilency and pressure even after prolonged years of aging and exppsure.
Applications
Cold shrink tube,Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |

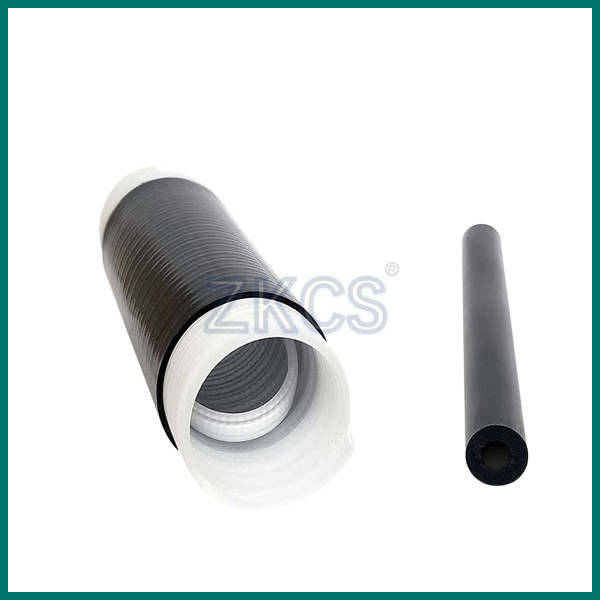

Product pictures
