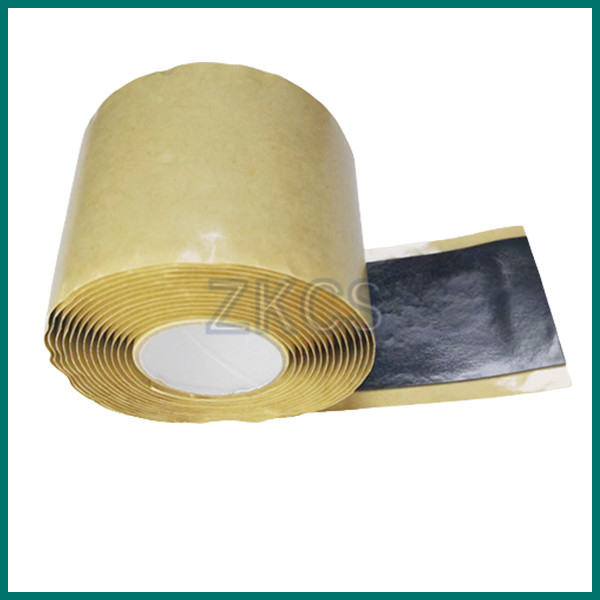

Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m

Customer Reviews
very good machine recommendation

—— Caroline

nice machine, thanks for your help

—— Richard

Your EPDM cold shrink tube is very nice, we will continue our cooperation

—— Jenny

Your team is very professional in cold shrink industry

—— Michelle

I'm Online Chat Now

Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m

Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m
Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m

Large Image :  Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m

Product Details:
Place of Origin: China
Brand Name: ZKCS
Certification: ROHS / CE / SGS or according to customers' requirements
Model Number: ZK2028
Payment & Shipping Terms:
Minimum Order Quantity: 10rolls
Price: $3.04 -$2.87 /roll
Packaging Details: Standard Exporting Carton Box or according to customers' requirements
Delivery Time: 7-10days for sample orders;20-30days for bulk order
Payment Terms: T/T, Western Union, MoneyGram, D/P, L/C
Supply Ability: 50000rolls/week

Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m

Description
Product Name: Waterproof Seal Mastic Tape Material: Rubber
Color: Black Operation Temperature: 90℃ - 132℃
Voltage Range: Within 35KV Specification: ZK2028
Functions: Sealable / Insulable/ Waterproof
Highlight:

Waterproof Insulating Electrical Tape

,

scotch 2228

,

35KV Insulating Electrical Tape

Waterproof Insulation Tape

It is composed of self-adhesive rubber and insulating mastic. It has excellent adhesive and electrical properties, chemical resistance, water and moisture resistance. It is suitable for the insulation and waterproof sealing of various solid medium cable joints, as well as the moisture protection of cable sheaths.



Product Model No. Normal Specification
Waterproof Insulation Tape ZK2028 51mm*1.65mm*3m
51mm*1.65mm*1m



Technical parameters
Performance Typical data Test method
Tensile strength 1.29MPa ASTM D 4325
Elongation at break 750-970% ASTM D 4325
dielectric strength 22.62-26.5KV/mm ASTM D 4325
Adhesion(180°,steel plate) 78.4N/50mm ASTM D 1000
Ozone aging Pass ASTM D 4388
UV aging Pass ASTM D 4388
Xenon lamp Pass ASTM D 4388

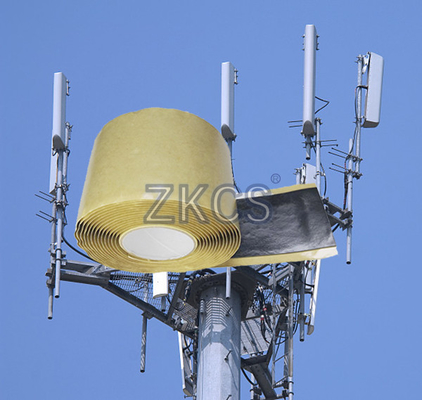

Application

 Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m 0

Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m 1



Packing



Waterproof Insulating Electrical Tape 2228 35KV 51mm*1.65mm*3m 2



Looking forward to your further information sincerely. Choose us,Choose success !
