Product Details:
|
| Color: | Grey,green,red,yellow | Application: | Electrical,insulation Jacketing |
|---|---|---|---|
| Place Of Origninal: | China | Product Name: | High Volatge Self Fusing Silicone Tape |
| Material: | Silicone | Size: | 50mm*0.5mm*5m |
| High Light: | Protective Cold Shrink Cable Accessories,End Sealing Silicone Rubber Tape,Self Fusing Silicone Rubber Tape |
||
Product name:
Protective Cold Shrink Cable Accessories Self Fusing Silicone Rubber Tape
Brief introduction:
Product Features:
1.Excellent heat, chemical and moisture resistance
2.Good fuel, water, oil, acids resistance
3.Full cure is achieved in 24 hours
4.Tear and abrasion resistant
5.Non-flammable
6.UV resistant
Product Application:
For electrostatic shielding on high voltage splices and terminations.Filling indents in compression connectors and rebuilding strand shielding on high voltage splices.Shielding bus and overhead connections.
Technical parameters
| No. | Items | Test standard | Unit | Results |
| 1 | Hardness | GB/T 531.1-2008 | Shores A | 50±10 |
| 2 | Tensile strength | GB/T 528-2009 | M pa | ≥4.5 |
| 3 | Elongation at break | GB/T 528-2009 | % | ≥350 |
| 4 | Dielectric coefficient | GB/T1408.1-2006 | KV/mm | ≥22 |
| 5 | Volume resistivity | GB/T1410-2006 | Ω.cm | ≥1.3*1015 |
| 6 | Self-adhesive | ASTM D2148 | N/cm | >3.5 |
| 7 | Water absorption | % | <0.9 | |
| 8 | Density | GB/T 20631.2 | g/cm3 | <1.5 |
| 9 | Flame retardant | grade | UL-94 | V0 |
| 10 | Heat resistant temperature | 180 | ||
| 11 | Withstand voltage | 15KV |
For your information:

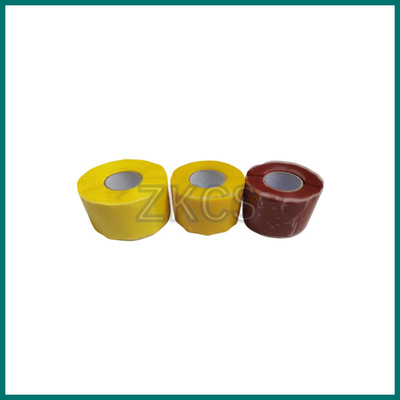

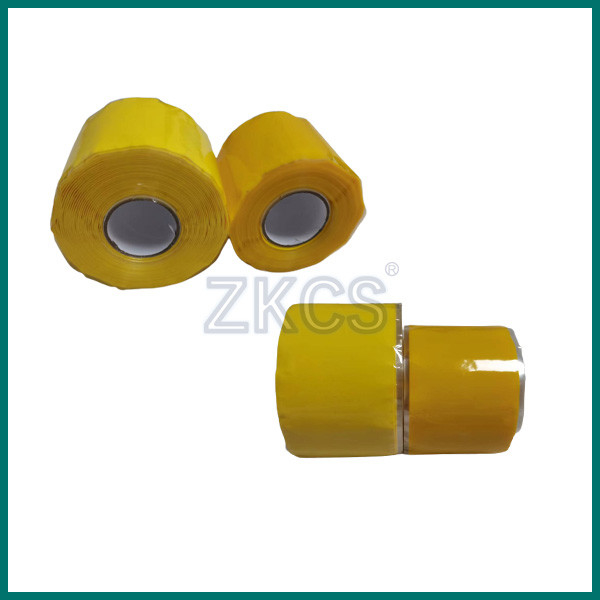

Product pictures for reference.
