Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Model Number: 10KV, 20KV, 35KV
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiations
Packaging Details: carton box
Delivery Time: 20-30days
Payment Terms: L/C, T/T,etc
Supply Ability: 100000pcs/month

3 Core Silicone Cold Shrink Breakout for for flexibility of medium-voltage applications

Description
Material: Silicone Rubber Color: Light Grey
Type: Cable Accessories Thickness: Customized
Application: Low & Middle Voltage Product Name: Cable Breakout Boots
Fabrication Machine: Pneumatic Expanding Machine Adventage: Waterproof
High Light:

Cold Shrink Cable Breakout Boots

,

Silicone Rubber Cable Breakout Boots

,

Silicone Breakouts Cable Accessories

Light Grey Cold Shrink Cable Breakout Boots Silicone Rubber Material



Cold Shrink Cable Breakout Boots to protect and seal the crutch area of 3 core polymeric



Cold shrink Breakout Boots Introduction:

Cold shrink breakout boots are used to protect the shielded cable in areas where the phase line bifurcates, and to terminate other damages caused by the environment such as moisture, pollution, corrosion and ozone. Cold shrink cable Breakout boots are designed as a quick and reliable method to protect and seal the crutch area of 3 core polymeric and paper insulated power cables.



Cold shrink cable breakout boots specification and model


Size Core Base dimension (mm) branch dimension (mm) Cable range(mm2)
ID AS supplied ID After recovery ID AS supplied ID After recovery
85/35 3cores For 15kV 85 34 32 13 25-50
95/50 95 49 38 16 70-120
100/60 105 56 45 20 150-240
110/65 114 63 52 24 300-400
120/75 3 cores for 36kv 122 71 55 25 35-70
135/85 139 83 60 30 95-185
150/90 155 90 70 37 240-400
60/20 4 cores for 1kV 60 18 20 7 25-50
70/25 70 23 26 9 70-120
90/35 90 32 33 13 150-240
100/40 100 38 40 17 300-400







Cold Shrink Breakout Boots Features:

  • Superior support strength and toughness, to ensure that the cable installation of the strip does not appear broken phenomenon;
  • Superior low temperature brittleness, can be installed in the Arctic area;
  • Superior high temperature resistance, can be in the equatorial area, strips no deformation;
  • Meet ROSH 2.0 standard;
  • Strict quality control, all use fresh raw materials, reliable quality;
  • Quickly and east installation using no heat source or special tools
  • Excellent resistance to UV, Ozone and moisture
  • Excellent thermal stability
  • Range covers all popular cable sizes available
  • Standard colour: Grey
  • Semi-conductivity version also available

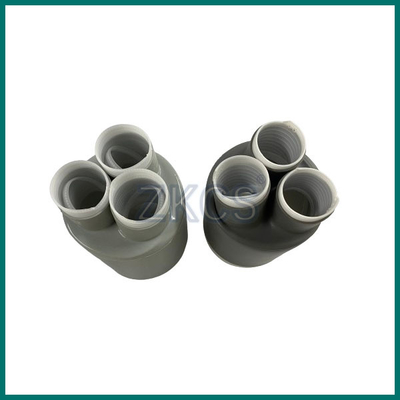

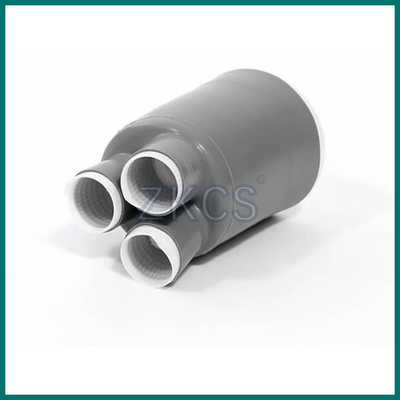

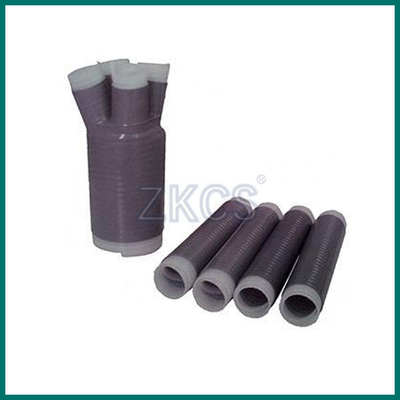

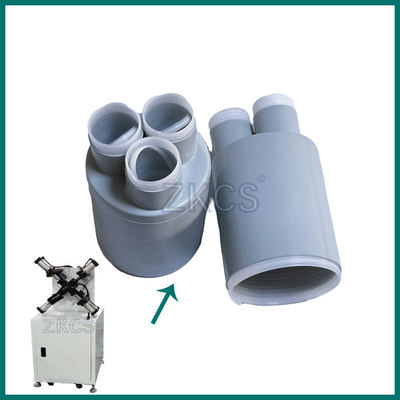

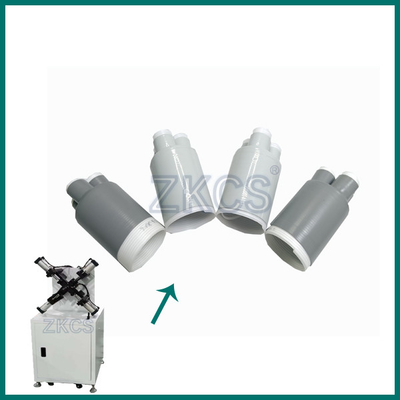

Cold Shrink Breakout Boots Cable Accessories Reference  Picture:

3 Core Silicone Cold Shrink Breakout for for flexibility of medium-voltage applications 0

3 Core Silicone Cold Shrink Breakout for for flexibility of medium-voltage applications 1
