Product Details:
|
| Color: | Black Customized | Application: | For Jointing And Repairing A Wide Range Of Solid Dielectric Power Cables Up To 69 KV. |
|---|---|---|---|
| Place Of Origninal: | China | Material: | Ethylene Propylene |
| Size: | 19;25.4;38;54mm In Width | Length: | 9.15m |
| High Light: | Self-amalgamating EPR insulation tape,High Voltage Insulation Tape,Self-amalgamating tape |
||
Product name:
An insulating, self-amalgamating tape based on EPR (Ethylene Propylene Rubber) ,0.76mm thick
High Voltage Insulation Tape description:
An insulating, self-amalgamating tape based on EPR (Ethylene Propylene Rubber). Its colour is black.
Excellent physical and electrical properties with a high degree of stability under conditions of use.
Availability:Asia/EU/NA;Currently available in all regions, subject to supply considerations.
The tape must be compatible with all synthetic cable insulations.
The tape must have a dissipation factor of less than 5% at 130°C (266°F) and must have a shelf life of 3 years.
Product Features:
The tape amalgamates rapidly when applied under tension to provide a void-free homogeneous wrapping,
Compatible with a wide range of rubber and plastic dielectric cable insulation.
These include polyethylene.Excellent resistance to water and ozone.
The tape will remove cleanly when cut, allowing it to be used as temporary insulation or protection.
Service temperature: -40°C to +100°C.
Supplied in an easy to handle and apply tape form. The product is interleaved with a disposable plastic liner.
Product Normal Specification:
| Product | Model No. | Normal Specification |
|
ZK2023 High Voltage Insulation Tape |
1 | 19mm*0.76mm*9.15m |
| 2 | 25.4mm*0.76mm*5m | |
| 3 | 38mm*0.76mm*9.15m | |
| 4 | 51mm*0.76mm*9.15m |
Non flame retardant self-adhesive rubber tape technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 3.83MPa | ASTM D 4325 |
| Elongation at break | 850% | ASTM D 4325 |
| dielectric strength | 35.16KV/mm | ASTM D 4325 |
| volume resistivity | 3.5×1015Ωcm | ASTM D 4325 |
| Heat aging | Pass | ASTM D 4325 |
| Ozone aging | Pass | ASTM D 4325 |
| UV aging | Pass | ASTM D 4325 |
| Xenon lamp | Pass | ISO 4892-2 |

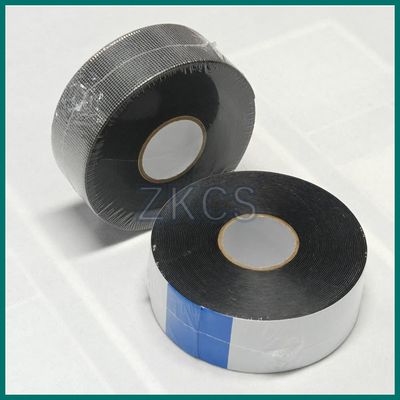

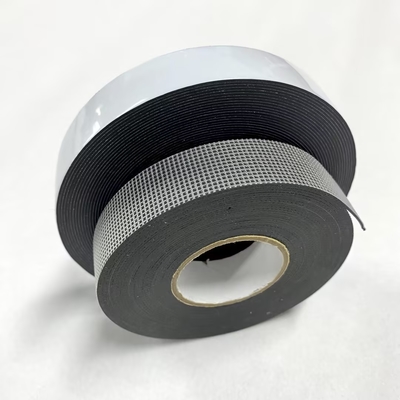

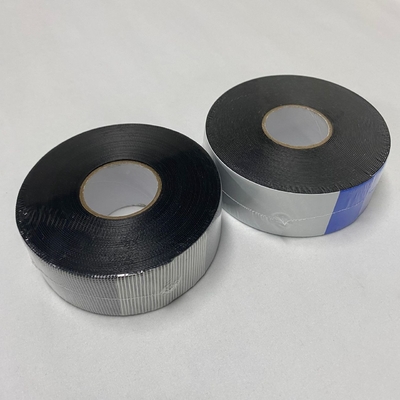

Product pictures for reference.
For your information:
