premium EPR Self amalgamating tape used for primary insulation up to 69kV cables

premium EPR Self amalgamating tape used for primary insulation up to 69kV cables
premium EPR Self amalgamating tape used for primary insulation up to 69kV cables
premium EPR Self amalgamating tape used for primary insulation up to 69kV cables premium EPR Self amalgamating tape used for primary insulation up to 69kV cables premium EPR Self amalgamating tape used for primary insulation up to 69kV cables

Large Image :  premium EPR Self amalgamating tape used for primary insulation up to 69kV cables

Product Details:
Place of Origin: China
Brand Name: Customizes
Certification: ISO9001
Model Number: ZK2023 premium EPR Self amalgamating tape
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiate
Packaging Details: carton packing
Delivery Time: 3-5days

premium EPR Self amalgamating tape used for primary insulation up to 69kV cables

Description
Color: Customized Application: For Jointing And Repairing A Wide Range Of Solid Dielectric Power Cables Up To 69 KV.
Place Of Origninal: China Material: Ethylene Propylene
Size: 19;25.4;38;54mm Thickness: 0.76mm
High Light:

High Voltage Insulation Tape

,

EPR Electrical Tape

,

EPR Self amalgamating tape

Product name:



premium EPR Self amalgamating tape used for primary insulation up to 69kV cables



High Voltage Insulation Tape description:



Self amalgamating tape is a high voltage insulation tape, composed of highly conformable self-amalgamating EPR (Ethylene Propylene Rubber) material and a liner, which can be easily peeled off.
The tape is non-vulcanizing with excellent insulation, excellent electrical property and long shelf life.
It is widely used for a low voltage as well as a high voltage insulation for splicing and terminating cables up to 69KV circuit.



Product Features:



●Made of highly conformable EPR material, self-amalgamating, non-vulcanizing
●With a liner, which can be easily removed and won’t stick to the tape while using the tape
●Excellent and stable electrical property, Good physical property
●Excellent Insulation for low as well as high voltage up to 69KV
●Good compatibility with all solid dielectric cables
●Suitable for splicing cables at emergency overload temperature reaching 130℃
●Good aging resistance and long shelf life



Product Normal Specification:





Product Model No. Normal Specification



ZK2023

High Voltage Insulation Tape

1 19mm*0.76mm*9.15m
2 25.4mm*0.76mm*5m
3 38mm*0.76mm*9.15m
4 51mm*0.76mm*9.15m







Non flame retardant self-adhesive rubber tape technical parameters



Technical parameters
Performance Typical data Test method
Tensile strength 3.83MPa ASTM D 4325
Elongation at break 850% ASTM D 4325
dielectric strength 35.16KV/mm ASTM D 4325
volume resistivity 3.5×1015Ωcm ASTM D 4325
Heat aging Pass ASTM D 4325
Ozone aging Pass ASTM D 4325
UV aging Pass ASTM D 4325
Xenon lamp Pass ISO 4892-2

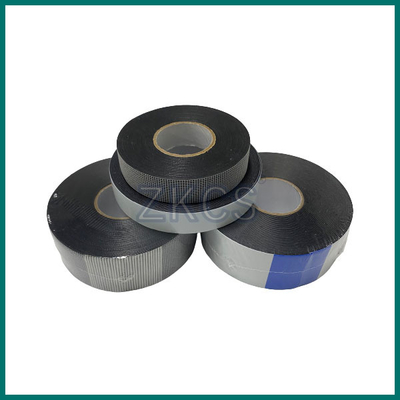

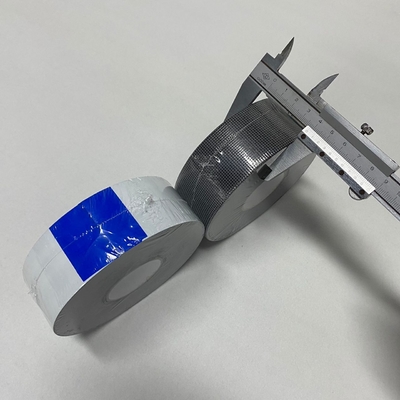

Product pictures for reference.



premium EPR Self amalgamating tape used for primary insulation up to 69kV cables 0

premium EPR Self amalgamating tape used for primary insulation up to 69kV cables 1

premium EPR Self amalgamating tape used for primary insulation up to 69kV cables 2



For your information:

Trade terms
FOB, EXW, CIF, DDU, DDP
Payment terms
T/T, L/C, Negotiable
MOQ
500
Supply capability
300000 pieces per month
Lead time
usually 10 working days
Shipment
Express, air, sea
Port
 Shenzhen
Sample availability
Yes
Sample time
usually 3-5 days
Packaging
Normal: Plastic bag & Carton & Pallet
Special: Customized packing
