Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables

Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables
Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables
Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables

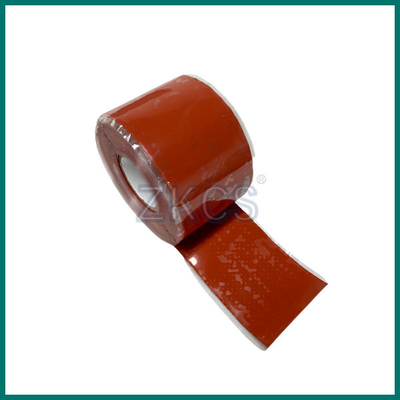

Large Image :  Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROSH 2.0
Model Number: EPR-5005/8/3
Payment & Shipping Terms:
Minimum Order Quantity: 1000pes
Packaging Details: carton box
Delivery Time: 20-30days
Supply Ability: 5000pes/month

Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables

Description
Material: Silicone Rubber Width: 25/50mm
Length: 5m Thickness: 03/0.5/0.8mm

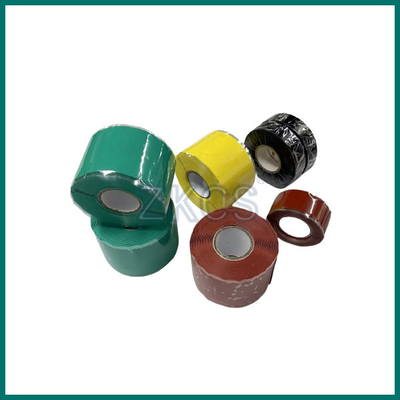

Color: Yellow,green,red,black Type: Self-fusing
Temperature: 180°C Application: Cable Insulation
High Light:

Self-Fusing Silicone tape

,

electrical tape

,

Silicone Self-Fusing tape

Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables



Product name

Length

(±0.05)M

Width

(±1.5)mm

Thickness

(±0.05)mm

Parameters
Red superior aging resistance Self-Fusing Silicone tape 5 50 0.5 See below chart
Red superior aging resistance Self-Fusing Silicone tape 5 50 0.8 See below chart



Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables Technical Parameters:

No. Items Test standard Unit Results
1 Hardness GB/T 531.1-2008 Shores A 50±10
2 Tensile strength GB/T 528-2009 Mpa ≥4.5
3 Elongation at break GB/T 528-2009 % ≥350
4 Dielectric coefficient GB/T1408.1-2006 KV/mm ≥22
5 Volume resistivity GB/T1410-2006 Ω.cm ≥1.3*1015
6 Self-adhesive ASTM D2148 N/cm >3.5
7 Water absorption   % <0.9
8 density GB/T 20631.2 g/cm3 <1.5
9 Flame retardant grade UL-94 V0
10 Heat resistant temperature     180
11 Withstand voltage     15KV
12 Color     Red, yellow, green etc





Features:

1: Have good fire performance, can achieve UL94-V0 flame retardant standard

2: Excellent arc force resistance characteristics

3: Excellent resistance to power leakage tracking features

4: Excellent Ozone resistance characteristics

5: Excellent insulation properties

6: Good sticker make installation easier

7: Can use for a long time in very low temperature, nice low temperature resistance performance

8: Good heat resistance characteristics, can be used in 180℃ for long time use.

9: Excellent weather resistance properties



Application:

1. It can be applied to high-voltage cable heads to play a good role in anti-arc and anti-leakage tracking. It is suitable for wrapping on power cables of various insulation materials.

2. It can be used for insulation protection in electrical cabinets.

3. It can be applied to H-class heat-resistant insulation.





Red superior aging resistance Self-Fusing Silicone tape for insulation protection of power cables 0
