Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV

Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV
Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV

Large Image :  Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV

Product Details:
Place of Origin: China
Brand Name: Customizes
Certification: SGS
Model Number: ZK2023 Self-amalgamating EPR tape
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiate
Packaging Details: carton packing
Delivery Time: 3-5days
Payment Terms: T/T, D/P, D/A, Western Union

Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV

Description
Color: Black Or Printed Application: For Jointing And Repairing A Wide Range Of Solid Dielectric Power Cables Up To 69 KV.
Place Of Origninal: China Material: Ethylene Propylene
Width Size: 19;25.4;38;54mm Thickness: 0.76mm
High Light:

EPR self amalgamating tape

,

self amalgamating tape

,

35kv self amalgamating tape

Product name:



69KV EPR high voltage insulation tape for cable joint protection



Application:

It is suitable for main insulation and cable joint protection of 69kv and below voltage levels .zk2023 tape combines quickly and can quickly form a void-free,electrically stable sealing layer,which is an ideal choice for electrical insulation and moistureproof and waterproof for telecommunicaiton,mining,electrical industry.



Product Features:



◆ Ethylene propylene rubber tape with a thickness of 0.76mm

◆ It has excellent self-fusing properties

◆ high dielectric strength,and stable chemical properties

Can be used to splice and terminate cable, the emergency overload temperatures can reach 130℃.

◆ Physical and electrical properties are unaffected by the degree of stretch.

◆ A special polyester liner which will not stick to the tape upon unwind.

◆ Operation and installation easily.

◆ Compatible with all solid dielectric cable insulation:





Product Normal Specification:





Product Model No. Normal Specification



ZK2023

LINERED RUBBER (EPR) HIGH VOLTAGE SELF AMALGAMATING TAPES



1 19mm*0.76mm*9.15m
2 25.4mm*0.76mm*5m
3 38mm*0.76mm*9.15m
4 51mm*0.76mm*9.15m







EPR high voltage insulation tape technical parameters



Technical parameters
Performance Typical data Test method
Tensile strength 3.83MPa ASTM D 4325
Elongation at break 850% ASTM D 4325
dielectric strength 35.16KV/mm ASTM D 4325
volume resistivity 3.5×1015Ωcm ASTM D 4325
Heat aging(130℃168h) Pass ASTM D 4325
Ozone aging Pass ASTM D 4325
UV aging Pass ASTM D 4325
Xenon lamp Pass ISO 4892-2

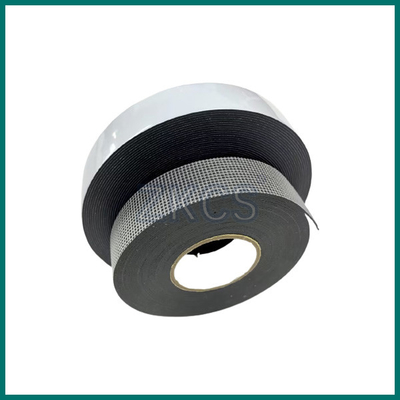

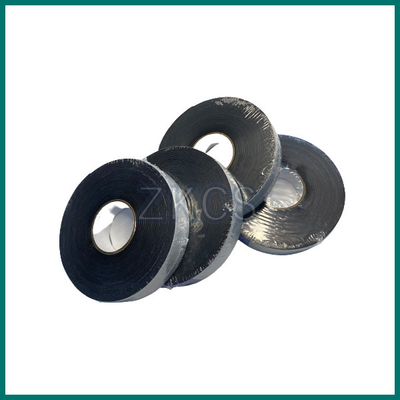

Product pictures for reference.



Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV 0

Primary insulation EPR self amalgamating tape for building stress cones on cables up to 35kV 1









For your information:

Trade terms
FOB, EXW, CIF, DDU, DDP
Payment terms
T/T, L/C, Negotiable
MOQ
500
Supply capability
300000 pieces per month
Lead time
usually 10 working days
Shipment
Express, air, sea
Port
 Shenzhen
Sample availability
Yes
Sample time
usually 3-5 days
Packaging
Normal: Plastic bag & Carton & Pallet
Special: Customized packing
