Product Details:
Place of Origin: China
Brand Name: Customizes
Certification: ISO9001
Model Number: ZK2028 Waterproof Insulation Tape
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Packaging Details: carton packing
Delivery Time: 3-5days

Premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape

Description
Color: Black Or Customized Application: Telecommunication&Electrical Industry
Place Of Origninal: China Product Name: Self-fusing Rubber Electrical Insulating And Sealing Tape
Size: 51mm*1.65mm*3m;51mm*1.65mm*1m Or Customized Material: (EPDM) Backing Coated With An Aggressive, Temperature-stable Mastic Adhesive On A Liner
High Light:

electrical insulation

,

Waterproof Insulation Tape

,

self-fusing rubber electrical insulating and sealing tape

Premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape



Product Model No. Normal Specification
ZK 2028 Waterproof Insulation Tape 1 51mm*1.65mm*3m
  2 51mm*1.65mm*1m



Waterproof Insulation Tape​ Brief introduction and installation:

A conformable self-fusing rubber electrical insulating and sealing tape. KC80 consists of ethylene propylene rubber (EPR) and butyl mastic adhesive. It has strong adhesion to copper, aluminum, and cable jackets. It provides excellent waterproofing performance and temperature stability at 90℃,and withstanding of overload temperature up to 130℃.

Installation:
Step 1 Wipe off the dusts on the splice area before wrapping.
Step 2 Remove the liner and stretch the tape to 1 to 2 times of its original length, apply the tape in 50%-lapped with mastic side toward area to the wrapped. Stretching the tape to 4 times of its original length is not recommended.
Step 3 Make sure there is 30mm to 50mm wrapping tape above both sides of the splice area.
Step 4 After waterseal mastic tape is applied, overwrapping PVC insulation tape is recommended, apply 3 layers of PVC insulation tape in a 50% overlapping with no tension. Make sure not to overstretch the PVC tape during installation.





Waterproof Insulation Tape​ Product Features:

◆ Continuous waterproofing.
◆ Highly self-fusing tape.
◆ Suitable for irregular shapes cable.
◆ Resistance to high/low temperature.
◆ Resistance to corrosion.
◆ Resistance to ozone, UV, xenon exposure.
◆ New formulation for insulation.
◆ Operation and installation easily.
◆ Excellent adhesion to copper, aluminum and cable jacket.





Waterproof Insulation Tape Product Application:

For For telecommunication,electrical industry.





Waterproof Insulation Tape Technical parameters:



Technical parameters
Performance Typical data Test method
Tensile strength 1.29MPa ASTM D 4325
Elongation at break 970% ASTM D 4325
dielectric strength 26.5KV/mm ASTM D 4325
Adhesion(180°,steel plate) 78.4N/10mm ASTM D 1000
Heat aging Pass ASTM D 4388
Ozone aging Pass ASTM D 4388
UV aging Pass ASTM D 4388
Xenon lamp Pass ASTM D 4388

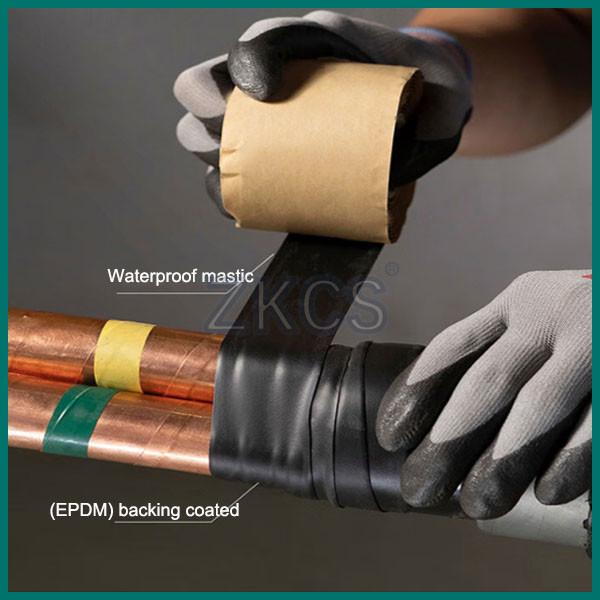

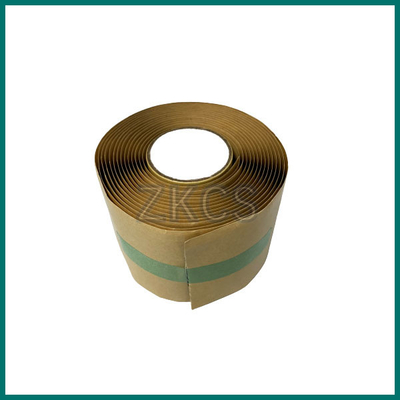

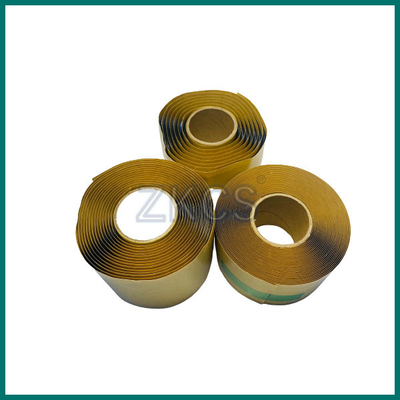

Product pictures for reference.



Premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape 0



For your information:

Trade terms
FOB, EXW, CIF,
Payment terms
T/T, L/C, Negotiable
MOQ
500
Supply capability
300000 pieces per month
Lead time
usually 10 working days
Shipment
Express, air, sea
Port
Shenzhen
Sample availability
Yes
Sample time
usually 3-5 days
Packaging
Normal: Plastic bag & Carton & Pallet
Special: Customized packing
