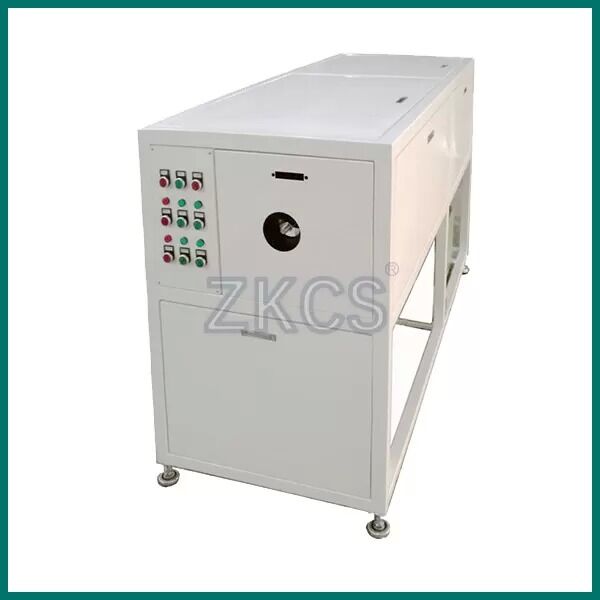

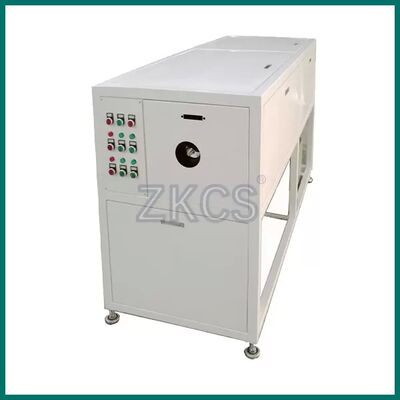

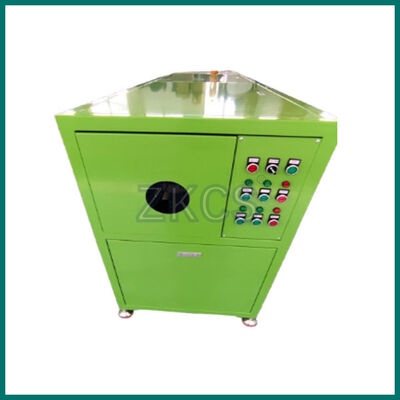

Stainless Steel High Speed Wire Expanding Machine

Stainless Steel High Speed Wire Expanding Machine
Stainless Steel High Speed Wire Expanding Machine Stainless Steel High Speed Wire Expanding Machine

Large Image :  Stainless Steel High Speed Wire Expanding Machine

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROSH
Model Number: ZK-WEX750
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: customized
Packaging Details: Export special usage polywood case
Delivery Time: 20-30days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 20days for 1 machine production
Contact Now Chat Now

Stainless Steel High Speed Wire Expanding Machine

Description
Main Materia: Stainless Steel Condition: New
Usage: Cold Shrink Rubber Pipe Expanding Feature Material: Corrosion Resistant, Durable
Applicable Diameter: 5mm - 10mm
Highlight:

Stainless Steel High Speed Wire Expanding Machine

,

Hydraulic Wire Expanding Machine

,

Cold Shrink Rubber Pipe Expanding Machine

Product Description:


This Stainless Steel High Speed Wire Expanding Machine is specially designed for expanding small diameter 5-10mm cold shrink rubber products.
Equipped with reliable hydraulic control system, the stainless steel high speed unit runs stably and efficiently.
It is perfectly applicable for insulating straight pipe, sealing pipe and similar cold shrink rubber tubes.
Products with diameter over 60mm do not need wire expanding treatment, which avoids redundant processing.
This Stainless Steel High Speed Wire Expanding Machine features time-saving, labor-saving and cost-saving performance, ideal for mass production of cold shrink rubber accessories with stable industrial processing capacity.



Product Features:
  • Adopt Stainless Steel High Speed structure, corrosion resistant, durable and long service life.
  • Professional hydraulic control system, stable operation and precise expanding effect.
  • Customized for 5-10mm small diameter cold shrink rubber products exclusive expansion.
  • Suitable for insulating straight pipe and sealing pipe forming and expanding processing.
  • No need wire expanding for diameter over 60mm, targeted and more practical.
  • Stainless Steel High Speed working mode greatly improves production efficiency.
  • Labor-saving operation, reduce manual work intensity effectively.
  • Remarkably save production cost for rubber processing enterprises.
  • Simple operation, easy maintenance, suitable for continuous batch working.
  • Industrial grade configuration, stable performance for long-term running.



Product Application:


This Stainless Steel High Speed Wire Expanding Machine is widely used for 5-10mm small diameter cold shrink rubber products expansion.

It mainly serves insulating straight pipe, sealing pipe and all kinds of cold shrink rubber tube parts.

Widely applicable in rubber product factories, cold shrink accessories processing plants and cable supporting industries.

Fit for power insulation parts, sealing component manufacturing and hardware rubber supporting production.

With Stainless Steel High Speed advantage and hydraulic drive design, it is the dedicated expanding equipment for small-caliber cold shrink rubber tube production, excluding specifications above 60mm diameter.


No. Item Parameters
01 Dynamic system Hydraulic control
02 Hydraulic cylinder stroke 750mm
03 Length expansion stroke 100-560mm
04 Wire pulling cylinder 2pcs
05 Center push cylinder 1pc
06 After expanding diameter Min. 25mm
Max. 75mm
07 Machine color

Main body:light blue/white

Fence:white
08 Fence Lower closed fence
09 Accessory One set expanding mold
10 Ref. machine size(L×W×H) 2000×1000×1300mm
11 Matched mould According to product size
12 Voltage.Hz 380V/50Hz

FAQ

Q1: What products is this wire expanding machine suitable for?

A1: It is specially designed for 5-10mm small diameter cold shrink rubber products, such as insulating straight pipe and sealing pipe.

Q2: Is it suitable for pipe diameter over 60mm?

A2: No, pipes with diameter over 60mm do not need wire expanding processing, this machine is only for 5-10mm small caliber.

Q3: What control system does the machine adopt?

A3: It adopts full hydraulic control system, stable running, easy operation and precise expansion effect.

Q4: What are the advantages of this machine?

A4: Stainless steel structure, high speed working, time-saving, labor-saving, cost-saving, durable and easy maintenance.

Q5: Is it easy for new workers to operate?

A5: Yes, the operation is simple, no complex training needed, suitable for factory batch production.
