Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant

Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant
Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant

Large Image :  Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROHS
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotitaion
Packaging Details: carton
Delivery Time: 10-20days
Payment Terms: D/A,D/P,T/T
Supply Ability: 200000pcs/month
Contact Now Chat Now

Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant

Description
Uvresistance: Excellent Application: Cable Insulation, Sealing, And Protection
Flexible: Yes Material: Silicone Rubber
Easy To Install: Yes Installation: Pull-on / Stretch Fit
Corrosion Resistant: Yes Free Sample: Yes
Diameter: 40mm Hardness: 43+-3
Oem: Siclione Sleeve Type: Cold Shrink Production
Highlight:

Active Breathing Seal

,

All-Weather Durability

,

High Mechanical Damage Resistance

Product Introduction:

1. The Silicone cold shrink tube requires no heat gun or torch — just pull the inner cord and it shrinks instantly.

2. With a 4:1 expansion ratio, one Silicone cold shrink tube fits multiple cable diameters, making field installation much easier.

3. This Silicone cold shrink tube offers strong rebound resilience, excellent long-term moisture protection, and complete waterproofing.

4. The material is UV resistant, ozone resistant, and weatherproof — the Silicone cold shrink tube won’t crack under sunlight or extreme temperatures.

5. Tear strength is outstanding: even if you cut a small slit, the Silicone cold shrink tube will not continue to tear.

6. Once installed, the Silicone cold shrink tube actively seals by breathing with the cable, maintaining constant radial pressure over time.

Product Features:

  • Expansion ratio: up to 4:1

  • Strong rebound resilience

  • Long-term moisture resistance

  • Waterproof sealing

  • UV resistant / ozone resistant / weatherproof

  • Excellent tear strength (cut won’t spread)

  • Active sealing (breathes with cable)

  • High radial pressure

  • Outstanding mechanical damage resistance

  • Easy installation — no tools or heat required

Primary applications:

  • Telecom base stations – coaxial cable waterproofing

  • N-type connectors

  • 1/2 jumpers

  • Din heads & 1/2 jumper connectors

  • CATV (cable TV) connector waterproofing

  • Wire and cable splicing

  • General connector sealing & insulation

Parameters:
Properties Typical Data Test method
HS 49 A ASTM D 2240-75
Tensile Strength 9.8 MPa ASTM D412-75
Elongation at break 720% ASTM D412-75
Tear Strength 27 N/ mm ASTM D624C-73
Dielectric Strength 14.3kV/mm ASTM 149-75
Dielectric Constants 5.0(Initial data)/5.6(90degree in the water for 7 days)) /
Anti-enzyme (bacteria) The 28 day exposure without growth ASTM G-21
UV Resistant UV irradiation for 2000 hours without aging ASTM G-53

 Picture:

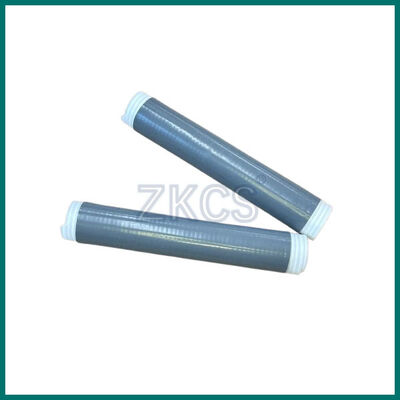

Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant 0

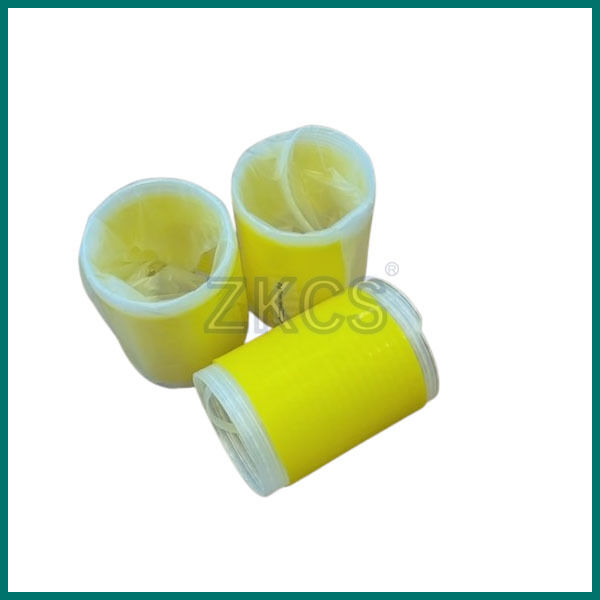

Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant 1

Silicone Cold Shrink Tube – 4:1 Expansion, UV Proof, Teardown Resistant 2

FAQ

Q1: What is a Silicone cold shrink tube?
A: A rubber tube that shrinks instantly when you pull out the inner support cord — no heat required.

Q2: Do I need a heat gun?
A: No. That’s why it’s called “cold shrink.” Just pull the cord.

Q3: How many times can it expand?
A: Up to 4x its original size. One tube fits different cable diameters.

Q4: Is it waterproof?
A: Yes. It provides full waterproofing and long-term moisture protection.

Q5: Can it handle outdoor conditions?
A: Yes. It’s UV resistant, ozone resistant, and weatherproof.

Q6: What if I cut it accidentally?
A: The tear will not spread — excellent tear strength.
