Product Details:
|
| Color: | Black | Type: | Elbow Type |
|---|---|---|---|
| Material: | EPDM | Application: | Low & Middle Voltage |
| Ratio Current: | 630A | Voltage: | 10kv |
| Standard: | IEC60502 | Diameter: | 159mm |
| High Light: | 20kA mv cable accessories,EPDM mv cable accessories,159mm Separable Connector |
||

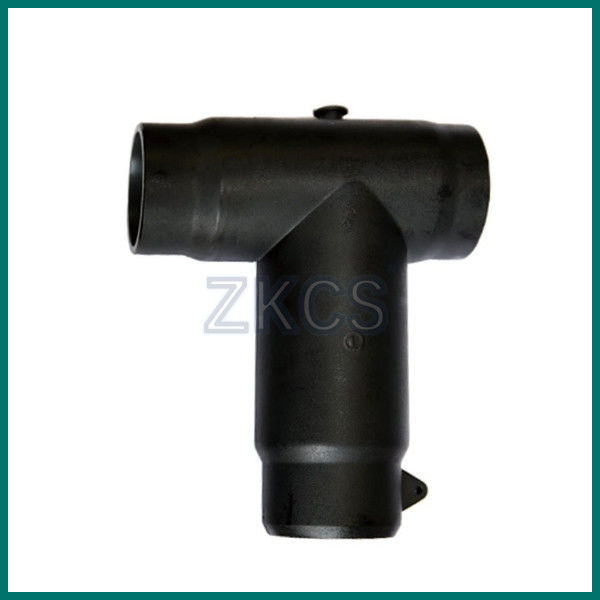

Cable Accessories Of Injection Molding 630A 10KV EPDM Rubber Front Separable Connector
The front plug of RY KQT-24(II)/630 Type II touchable cable is a fully insulated, fully sealed, fully shielded live and touchable cable connector, which is formed by one-time injection molding of imported high-quality EPDM rubber.
Applicable fields:
The product is small and compact, and the interface size complies with the EN50180/50181 standard C interface, which can be used for 24kV (12/20, 18/20) voltage level ring network cabinets, branch boxes, etc.
Electrical Performance
| Description | Technical Parameters |
| Rated voltage | 10kV |
| Rated current | 630A |
| 5 minutes power frequency withstand voltage | 39 kV |
| Partial Discharge | Q≤10pC@15 kV |
| Lightning impulse withstand voltage | 95 kV |
| Short-time withstand current | 20kA,2S |
| Peak withstand current | 63kA |
| Guideline:GB/T12706.4,IEC60502-4 | |
Dimensions
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
Contact Person: Mr. Richard Lee
Tel: +8618627678155
