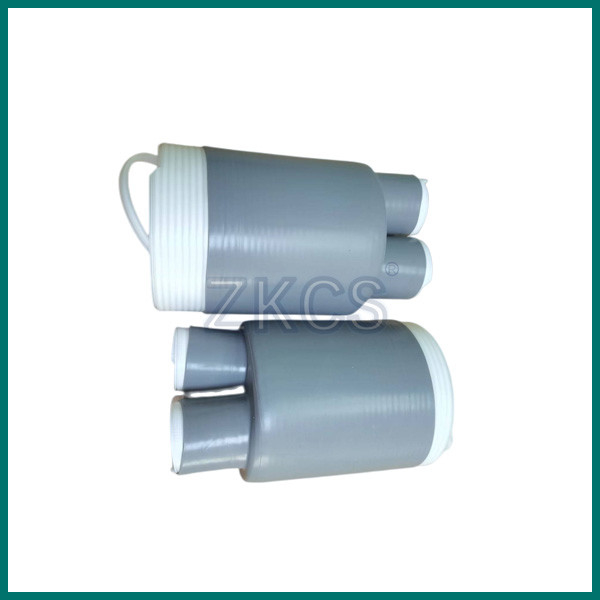

11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection

11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection
11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection 11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection

Large Image :  11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Model Number: CS-20
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: carton box
Delivery Time: 20-30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000pcs/month

11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection

Description
Color: Grey Or Black Material: Silicone Rubber
Type: Cable Accessiores Application: Middle Voltage
Product Name: 11kv Cold Shrink Breakout Boots For Termination Application: Telecom And Power Electric Industry
Sample Time: 5-7days
High Light:

11kv Cold Shrink Breakout Boots

,

Cable Connection Cold Shrink Breakout Boots

,

Termination Cable Breakout Boots

Product name:
11kv Cold Shrink Breakouts Used For Cold Shrink Termination Of Power Cablle Connection

Desciption:
Cold shrinkage technology is to use the excellent elasticity of silicone rubber, and the permanent deformation is small, pre-expand the product, use the support to withstand, when using the support, the product will quickly shrink and tightly hoop the cable

cold shrink Breakout are a series of open-ended molded silicone rubber sealing assemblies that are factory expanded and mounted on removable inner supporting plastic cores. They are supplied for field installation in a pre-stretched condition. The supporting cores are removed after the seal has been positioned for installation around the breakout area of a 3,4,5,6/C (3,4,5,6 conductor) cable.
Core removal allows the silicone rubber to shrink down to a predetermined diameter, creating an environmental enclosure for
individual cable phase legs and overall cable jacket.



Application:
the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.20KV 3 cores series spec and model



Voltage Model Suitable cable section area(mm²) Cable core insulation OD(mm²)

For 12/20KV 3cores indoor/outdoor terminators

(N/W)

and middle connector(J)

LSN/W/J-3/1 35~70 19.3~22.1
LSN/W/J-3/2 95~185 23.7~28.4
LSN/W/J-3/3 240~400 30.7~35.6
LSN/W/J-3/4 500~800



Feature :

• Material: silicone rubber

• Install quickly and accommodates a wide range of cable size.

• No torches or heat required.

• No specific user kills or craftsmanship required, just need take out the cores when installing,

• Excellent resistance to ozone and ultra-violet radiation.

• Excellent thermal stability.

• Good insulation property



    Our Advantage:
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C,

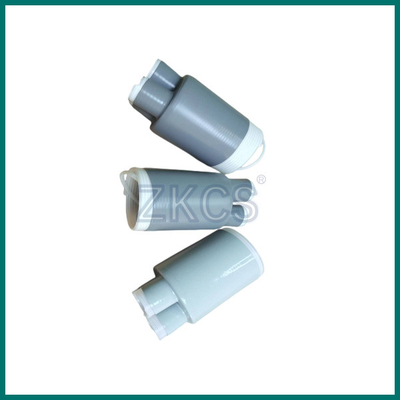

Picture for reference.
11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection 0

11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection 1
11kv Cold Shrink Breakout Boots For Termination Power Cablle Connection 211kv Cold Shrink Breakout Boots For Termination Power Cablle Connection 3
