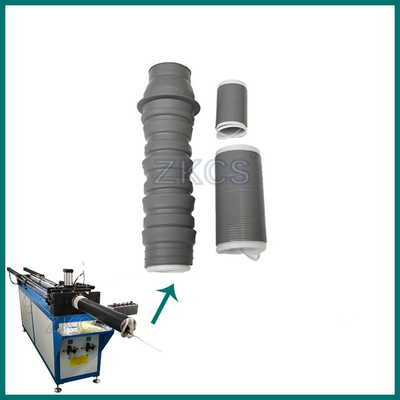

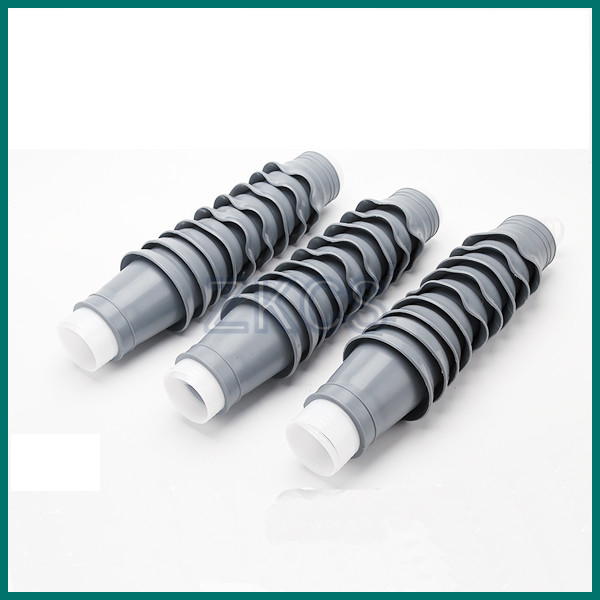

35KV Outdoor Cold Shrink Cable Terminal For Power Electrial Use

Product name

35KV Outdoor Cold Shrink Cable Terminal For Power Electrial Use

Product description

It mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced thchnology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installaion, and the elastomer will rapidly shrink and appress to the installation position.

 Features:

•  the use of imported liquid silicone rubber to ensure excellent insulation and high flexibility, the installation of the cable body has always been to maintain a constant radial pressure, local discharge is small, with the cable body with the "breathing."
• the terminal body with the cold shrink branch finger sets, cold shrink insulation tube and cold shrink terminal seal tube; intermediate connector with three waterproof sealing process to ensure that the annex excellent sealing moisture resistance.
• the installation is simple, the operation of the technical dependence is low, easy to master. Cable pretreatment, the stripping distance is short, the installation space needs small. Grounding method using constant force spring fixed ground, no welding or copper tied line, more efficient, safe and reliable.
•  anti-pollution, anti-aging, good hydrophobicity, with excellent corrosion resistance, cold resistance and anti-ultraviolet, to ensure long-term use of stable performance. Especially for high altitude areas, cold areas, wet areas, salt fog areas and heavily polluted areas

• Applicable scope

  Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.

  Rubber Typical Properties




  Properties	Test Method	Typical Value
  Color	/	Black
  Ultimate Tensile	ASTM D412-75	9.0MPa
  Ultimate Elongation	ASTM D412-75	750%
  Tear Resistance	ASTM D624C-73	30KN/m
  Fungus Resistance	ASTM G21 28 days exposure	No Growth
  Dielectric Strength	ASTM D149-75 @1.75 Original	21KV/m
  	7days in water at 90℃	20.5KV/m
  Volume resistance	ASTM D257	3.4×1015Ohm.cm




  All values are averages and are not intended for specification purposes.

  FAQ

  1. What is your payment term?
  -30% deposit, 70% balance before shipment.
  2. What is the standard production time for each order?
  -Production time around 7-15days depends on the product and quantity.
  Some items have in stock, we can deliver any time you want.
  3. Are you able to provide custom packaging?
  -Yes, but some items need MOQ to make custom packing.
  4. How long time the shipment will take?
  -It will take 5-7days if buy air and 20-30days by sea.
  5. May I have a look at your catalog?
  - Sure. anytime

  6. Will I get your sample?
  - Sure. The sample is Free And believes that our quality is the best!

  7. Could you provide OEM service?
  - Sure.Welcome to build a long relationship with us. We believe that we can provide the best OEM service for you.
