Product Details:
|
Material: | Silicone | Color: | Black Or Grey |
---|---|---|---|
Length: | Customized | Name: | Cold Shrink Tube |
Application: | Insulation Protection | Product Name: | Sealing Protection Over Multi-Core Cable Ends |
Packing: | Carton | Free Samples: | Yes |
Highlight: | Insulation Protection Cold Shrink End Caps,Sealing Protection Cold Shrink End Caps,Customized Cold Shrink Tube ROHS |
Product name:

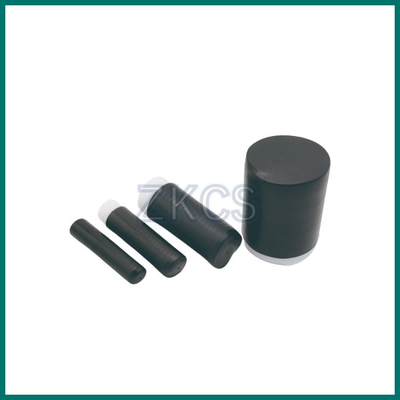

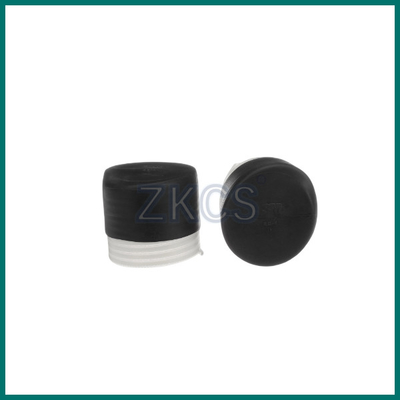

Easy To Apply Sealing Protection Over Multi-Core Cable Ends Cold Shrink End Caps
Description:
cold shrink end cap can be used to environmentally seal and mechanically protect exposed cable ends with no tools or tape use involved. Quick and easy to apply,
Cold Shrinkable End Caps are a convenient method to provide a moisture tight seal on all types of cable or conduits without the use of a heat source or special tools.
The caps are supplied pre-expanded on a removable core which is easily removed when the cap is placed in position by pulling out the spiral core and allowing the rubber end cap to shrink down to its original memory.
Features:
1:anti resistant
2:Fungus resistant
3:Acid and alkali resistant
4:Close ended
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
Material technical parameters: | |||||
No | Items | Test method | Unit | Test standard | Remarks |
1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
