Product Details:
|
Color: | Black,Grey | Material: | Silicone Rubber |
---|---|---|---|
Thickness: | 2.0mm | Type: | Cold Shrink |
Product Name: | Cold Shrink Stress Cone | Feature: | Waterproof,seal |
Keyword: | Silicone Cold Shrink Tube | ||
Highlight: | Waterproof Cold Shrink Stress Cone,silicone Cold Shrink Stress Cone,2.0mm Cold Shrink Stress Cone Kits |
Product name:
Electric Conduit Tubing And Joints Cold Shrink Stress Cone Din Connectors
■Suitable scope
Cold shrink tube also called cold shrink cable sleeves are a series of open -ended rubber sleeves ,pre-expand on a removeable core for easy installation.widely used in FEEX or power line deployments.
The silicone cold shrink tube provide a quick and easy method for protecting and sealing for cable jointing
Cold Shrink Tubing Kit, Thin Wall, Material EPDM Rubber, Flexible, Flame Retardant No, Adhesive Lined No, Temp. Range -67 Degrees to 275 Degrees F, Shrink Ratio 2:1, Number of Pieces 40, Includes (40) Tubes with Plastic Cores, Color Black, Length 9 in, Shrink Tubing Properties UV Light Resistant, Package Style Sticks, Kit Contents Single Size, Use With Wire Size 0.25 in to 0.88 in, Features Type N or 7/16 DIN Connectors,
Application
The main application is the sealing of coax connectors used in the wireless communication antenna market. These mainly outside installed connectors require an extra sealing.
Features:
1:simple installation:no other tools required
2:Accommodates a wide range of cable size
3:Weather ,mositure waterproof
4:UV and Ozone resistant
5:Dust,fungus resistance
6:Good thermal stablity
Rubber Parameters
Properties | Test Method | Typical Value |
Color | / | Light grey |
Ultimate Tensile | ASTM D412-75 | 9.0MPa |
Ultimate Elongation | ASTM D412-75 | 750% |
Tear Resistance | ASTM D624C-73 | 30KN/m |
Fungus Resistance | ASTM G21 28 days exposure | No Growth |
Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
7days in water at 90℃ | 20.5KV/m | |
Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.

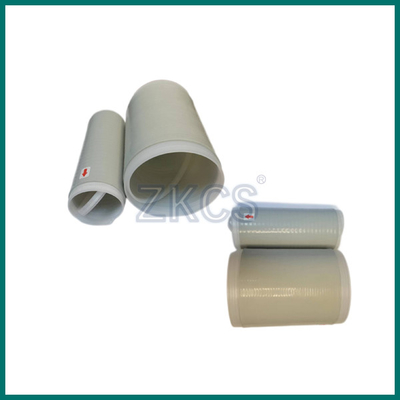

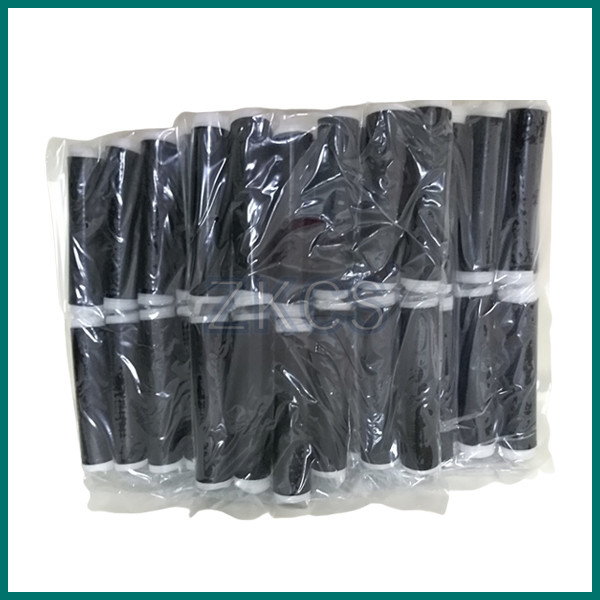

Applicable reference pics
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
Contact Person: Mr. Richard Lee
Tel: +8618627678155
