Product Details:
|
| Color: | Black,Grey | Material: | Silicone Rubber |
|---|---|---|---|
| Thickness: | 2.0mm | Type: | Cold Shrink |
| Product Name: | Flexible Cold Shrinkable Sleeving Cold Shrink Tube | Feature: | Waterproof,seal,anti-scratch |
| Keyword: | Cold Shrink Tube,silicone Cold Shrink Tube, | ||
| High Light: | cold shrinkable sleeving,old shrinkable sleeving for cable insualtion and protection,Flexible cold shrink sleeving |
||
Product name:

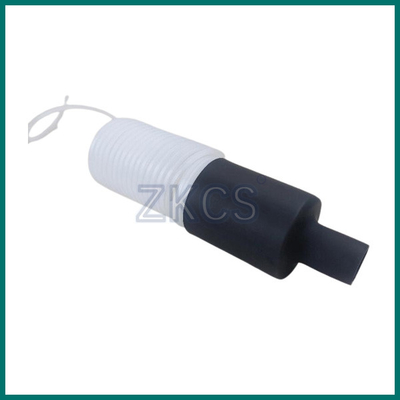

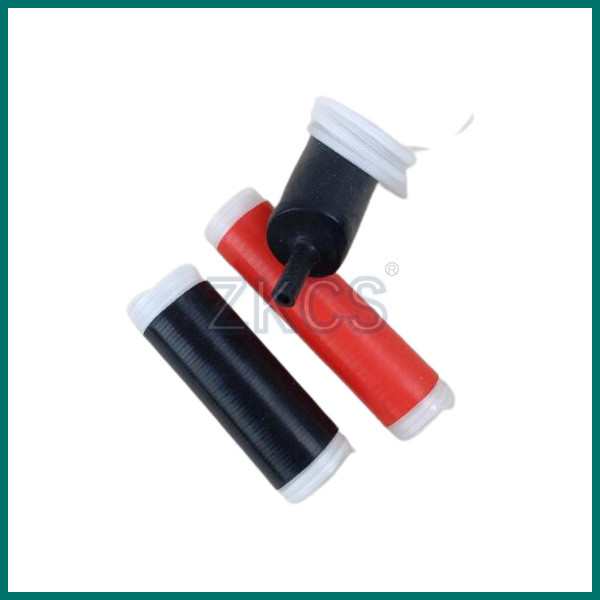

Black And Red Flexible Cold Shrinkable Sleeving For Cable Insulation And Protection
Product description:
The cold shrink cable joint is suitable for 1 or 3-core XLPE cable with Al or Cu conductor (1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface, thereby greatly minimizing partial discharge and improving its performance during operation.
Cold shrink advantages:
1:Installation Temperature: -40° up to 220° Celsius,
2:Shrink Method: 5:1 Colors: Black
3:Good weather and waterproof performance
4:t Tear Resistance UV and Ozone Resistant
5:No need heat treatment
Rubber Parameters
| Properties | Test Method | Typical Value |
| Color | / | Light grey |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.
Applicable reference pics
