Product Details:
|
| Material: | Silicone Rubber | Color: | Grey/black |
|---|---|---|---|
| Thickness: | Customized | Application: | Low & Middle Voltage |
| Product Name: | Cold Shrink Cable Breakout Boots | Attribute: | Cable Accessories |
| Highlight: | Cold Shrinkable Insulating Cable Breakout boots,multi core cable breakout boots,customized cold shrink breakout boots |
||
Multi core Cold Shrinkable Insulating Cable Breakout boots to protect and seal the crutch area
Cold Shrinkable Insulating Cable Breakout Boots Applicable:
Suitable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.
Designed as a quick and reliable method to protect and seal the crutch area of 3 or multi core polymeric and paper insulated power cables.
The silicone moulding provides excellent thermal stability and weathering protection. They can be installed quickly and easily without the need for special tools or heat.
20KV multi cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
|
For 12/20KV 3cores indoor/outdoor terminators (N/W) and middle connector(J) |
LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-3/4 | 500~800 |
Multi Cable Breakout High Light:
| cable accessories | 3 finger breakout boots |
| silicone rubber cable breakout | glove |

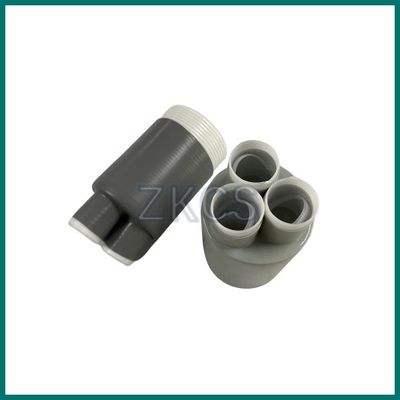

Cable Rubber Boot Reference picture:
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
