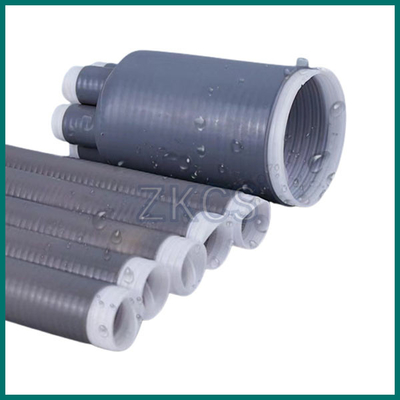

Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection

Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection
Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection
Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection

Large Image :  Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ISO9001
Model Number: 10KV, 20KV, 35KV
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiations
Packaging Details: carton box
Delivery Time: 20-30days
Payment Terms: L/C, T/T,etc
Supply Ability: 100000pcs/month

Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection

Description
Material: Silicone Rubber Color: Grey/black/customized
Thickness: 3.0mm Application: 1~36kV
Product Name: Cold Shrink 3 Cores Cable Breakout Fabrication Machine: Pneumatic Expanding Machine
Adventage: Waterproof,non Deformation, Attribute: Cold Shrink Cable Accessories
High Light:

cable joint breakout

,

cable breakout boots

,

cable breakout

Description:

Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection, are a series of open-ended molded silicone rubber sealing assemblies that are factory expanded and mounted on removable inner supporting plastic cores.



Breakout Boots Applicable:

suitable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation.Which are designed as a quick and reliable method to protect and seal the crutch area of 3 core polymeric and paper insulated power cables. The silicone moulding provides excellent thermal stability and weathering protection. They can be installed quickly and easily without the need for special tools or heat.



20KV multi cores series spec and model

Voltage Model Suitable cable section area(mm²) Cable core insulation OD(mm²)

For 12/20KV 3cores indoor/outdoor terminators

(N/W)

and middle connector(J)

LSN/W/J-3/1 35~70 19.3~22.1
LSN/W/J-3/2 95~185 23.7~28.4
LSN/W/J-3/3 240~400 30.7~35.6
LSN/W/J-3/4 500~800



























Cold Shrink 3 cores cable Breakout (1~36kV)​ FEATURES & BENEFITS
1.Quickly and east installation using no heat source or special tools
2.Excellent resistance to UV, Ozone and moisture
3.Excellent thermal stability
4.Range covers all popular cable sizes available
5.Standard colour: Grey
6.Semi-conductivity version also available

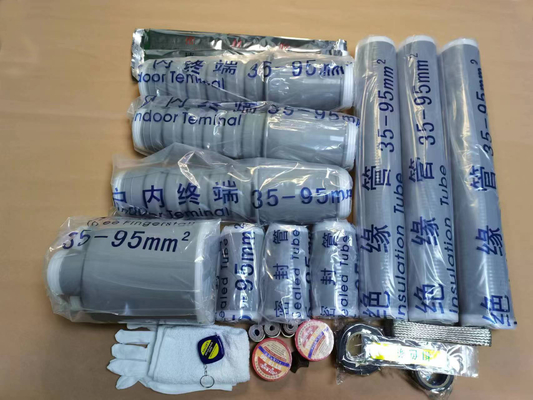

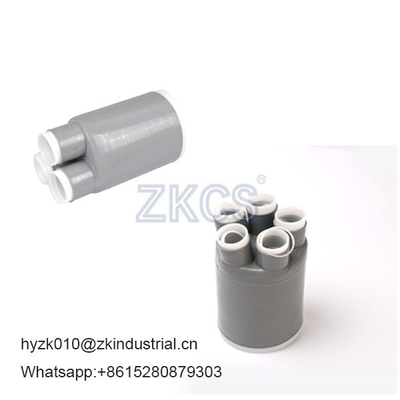

Cable Rubber Boot Reference picture:



Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection 0

Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection 1





FAQ

1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
