Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination

Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination
Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination
Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination

Large Image :  Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ISO9001
Model Number: 15 kV, 25 kV and 35kV
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: carton box
Delivery Time: 20-30days
Supply Ability: 50000pcs/month

Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination

Description
Material: Silicone Rubber Color: Light Grey, Black
Type: Cable Accessories Thickness: Customized
Application: 15 KV, 25 KV And 35kV Size: Customized
High Light:

cold shrink termination

,

cold shrink cable terminal

,

cold shrink cable accessories

Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination



Application: cold shrink terminations covers voltages from 12kV to 35kV with a maximum conductor size of 1000sqmm.

Which offers easy installation and reliable performance when terminating indoor and outdoor medium voltage cables. Made from high quality, UV resistant, silicone rubber, the Cold Shrinkable Termination offers a combination of durability and high performance in the field.

MV outdoor termination suited for 11kV polymeric single core cables and will provide the necessary seal against moisture penetration and perfect electrical field control.



10KV 1core series spec and model

Voltage Model Suitable cable section area(mm²) Cable core insulation OD(mm²)

12/20KV 1core indoor/outdoor terminators

(N/W)

LSN/W/J-1/1 35~70 19.3~22.1
LSN/W/J-1/2 95~185 23.7~28.4
LSN/W/J-1/3 240~400 30.7~35.6
LSN/W/J-1/4 500~800





























10KV 3 cores series spec and model

Voltage Model Suitable cable section area(mm²) Cable core insulation OD(mm²)

12/20KV 3cores indoor/outdoor terminators

(N/W)

LSN/W/J-3/1 35~70 19.3~22.1
LSN/W/J-3/2 95~185 23.7~28.4
LSN/W/J-3/3 240~400 30.7~35.6
LSN/W/J-3/4 500~800



























13 26/35KV 3 core indoor terminal kit 50-95mm²
14   120-185mm²
15   240-400mm²
16 26/35KV 3 core outdoor terminal kit 50-95mm²
17   120-185mm²
18   240-400mm²



Durability and high performance 15 kV, 25 kV and 35kV Cold Shrinkable Outdoor Termination 0



Features:

  • Good expanding strength and toughness, to ensure that the cable installation of the tube does not appear broken phenomenon;
  • Good low temperature brittleness, can be installed in the Arctic area, no broken;
  • Good high temperature resistance, can be in the hot area, product no deformation;
  • Meet ROHS 2.0 standard;
  • Strict quality control, all use fresh raw materials, reliable quality;

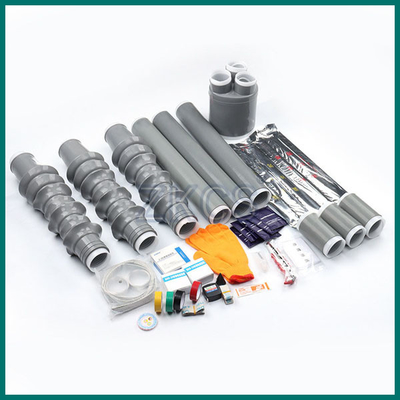

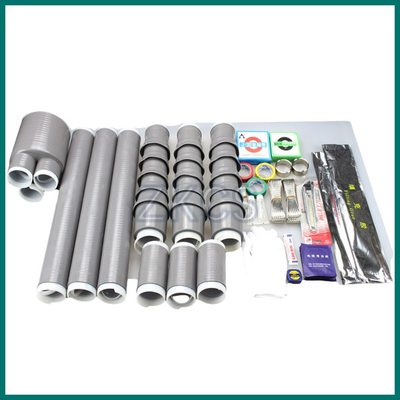

Material and Package for delivery:

Three Finger Series Silicon Rubber Breakout For Cable Insulation 0





FAQ

1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.

4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Shipment: express, sea and air shipping.
