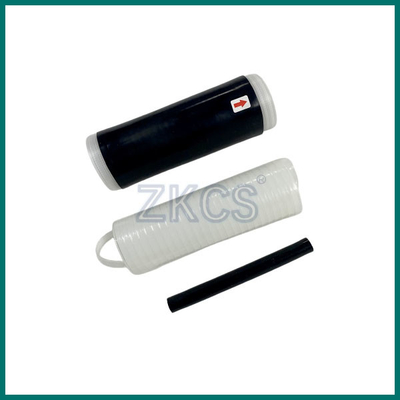

Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables

Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables
Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables
Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables

Large Image :  Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ROHS
Model Number: ZK-CSPM30-400
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: 50pcs or 100pcs/carton
Delivery Time: 10-20days
Supply Ability: 200000pcs/month

Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables

Description
Material: Silicone Rubber Color: Black/Grey/customized
Type: Cold Shrink Thickness: 3.0mm
Product Name: Cold Shrinkable Jacket Seals Brand: Customized
High Light:

COLD SHRINK SEALING SLEEVE

,

Cold Shrinkable Jacket Seals

,

cold shrink splice

Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables



■Suitable scope

Silicone cold shrinkable jacket seals are designed to seal the end of XLP, EPR or similar solid dielectric insulated power cables. The Cold Shrinkable Jacket Seal can be used when installing elbows or other cable accessories.

With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.



Rubber Parameters



Properties Test Method Typical Value
Color / Light grey
Ultimate Tensile ASTM D412-75 9.0MPa
Ultimate Elongation ASTM D412-75 750%
Tear Resistance ASTM D624C-73 30KN/m
Fungus Resistance ASTM G21 28 days exposure No Growth
Dielectric Strength ASTM D149-75 @1.75 Original 21KV/m
7days in water at 90℃ 20.5KV/m
Volume resistance ASTM D257 3.4×1015Ohm.cm


All values are averages and are not intended for specification purposes.



Features:

  • The product is submersible and UV resistant. The spiral tube design allows the users to remove the inner tube easily during installation. The rubber tube provides sealing and protection on jacketed concentric neural cable. No additional tools are required for installation.
  • It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.
  • Good high temperature resistance, can be in the hot area, product no deformation;
  • Suits for an extensive range of cable sizes because of the shrinkage
  • Simple installation, requires no special heating tools , and adhesive to seal the connections

Applicable reference pics:

Cold Shrinkable Jacket Seals for end of XLP,EPR solid dielectric insulated power cables 0







FAQ

1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.

4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Shipment: express, sea and air shipping.
