waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing

waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing
waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing

Large Image :  waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: SGS
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Negotiation
Packaging Details: 50pcs or 100pcs/carton
Delivery Time: 10-20day
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 100000 pcs/month

waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing

Description
Color: Black/Grey/customized Material: Silicone Or Silicone With Mastic Inside
Thickness: 3.0mm Type: Cold Shrink Tube
Product Name: Silicone Cold Shrink Tubing Feature: Waterproof,seal,non Deformation
Performance: Creates A Watertight Seal Certification: ISO9001
High Light:

simple installation

,

excellent tear strength

,

ultraviolet resistance

Product name:

Silicone Cold Shrink Tubing



Application:



Widely used in waterproof sealing of coaxial cables for cables for telecom base stations,N-type connection,1/2 jumper,Din head and 1/2 jumper connector,can be used as waterproof sealing of limited TV connectors ,connecting wires and cables ,other types of insulation sealing of connection.



Features:



*The expansion rate is about 2.5-4times ,strong resilence,long-term moisture resistance ,and excellent waterproof

*Weather resistance ,ozone aging resistance,ultraviolet resistance

*Excellent tear strength

*Simple installation

Model Inner Diameter After shrink length Cable range Min.dia(mm) Cable range Max.dia(mm)
CSP-15-40 15mm 40mm 4 9
CSP-25-130 25mm 130mm 6 9
CSP-28-125 28mm 125mm 8 23
CSP-40-115 40mm 115mm 11.9 34
CSP-40-130 40mm 130mm 11.9 34
CSP-40-140 40mm 140mm 11.9 34
CSP-45-130 45mm 130mm 13.5 39
CSP-45-150 45mm 150mm 13.5 39





Technical data

Properties Test TypicalValue
Color / Black
Ultimate tensile ASTM D412-75 9.0MPa
Ultimate elongation ASTM D412-75 820%
Tear resistance ASTM D624C-73 30KN/m
Fungus resistance ASTM G21 28days exposure no growth
Dielectric strength ASTM D 149-75@1.75 original 7days in water at 90
Volume resistance ASTM D257 3.4×1015 Ohm.cn

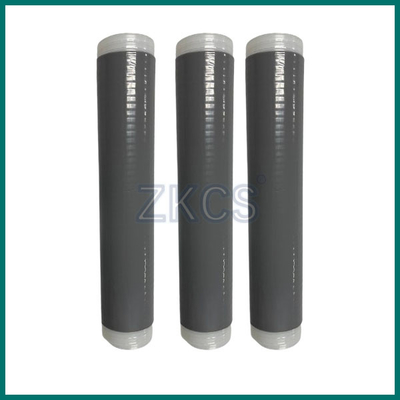

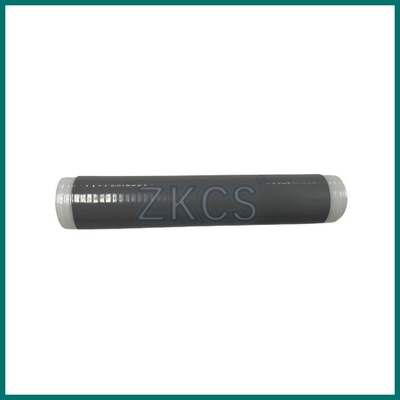

Silicone Cold Shrink Tube Reference pictures :



waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing 0

waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing 1







Silicone Cold Shrink Tubing with Mastic inside operating steps:

waterproof sealing Silicone Cold Shrink Tubing for N-type connection/Din head sealing 2





FAQ

1.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube, cold shrink tubing and silicone cable accessories kit in telecommunication and electrical power industry.



2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.



3. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Shipment: express, sea and air shipping.
