Product Details:
|
| Color: | Grey,green,red,yellow,blue | Application: | Electrical Maintenance, Insulation, Sealing |
|---|---|---|---|
| Place Of Origninal: | China | Size: | 50mm*0.5mm*5m |
| Product Name: | Self-Fusing Silicone Rubber Electrical Tape For Protecting High-voltage From Tracking,1 In X 16.4 Ft,Grey/green/red | ||
| Highlight: | arc resistance Silicone Self-Fusing Tape,Silicone Self-Fusing Tape,tracking resistance Silicone Self-Fusing Tape |
||
Product name:
Silicone Self-Fusing Tape
Brief introduction:
Silicone Self-Fusing Tape is a high-temperature, arc- and track-resistant tape composed of self-fusing, inorganic silicone rubber with an easy-tear and easy-strip liner.
Product Features:
*Excellent arc resistance
*Excellent tracking resistance
*Excellent ozone resistance
*Excellent insulation properties
*Good self-adhesiveness,easy to install by hand
*It can be used for a long time at extremely low temperature and has excellent low temperature resistance
*very good temperature resistance ,can be used for a long time at 180℃.
*Excellent weather resistance
Product Applicatiom:
1.It can be applied to high-voltage cable heads to play a good role in anti-arc and anti-leakage tracking.
2.It is suitable for wrapping on power cables of various insulation materials .
3.It can be used for insulation protection in electrical cabinets.
4.It can be applied to H-class heat-resistant insulation.
Technical parameters
| Technical Parameters | ||
| Performance | Typical | Test Method |
| Hardness | 50±10Shore A | GB/T 531.1-2008 |
| Tensile strength | ≥6Mpa | GB/T 528-2009 |
| Elongation at break | ≥400% | GB/T 528-2009 |
| Dielectric strength | ≥20kv/mm | GB/T 1695-2005 |
| Volume resistivity | 1.30*1014Ωcm | GB/T 1692-2008 |
| Self-absorption | ＞4.6N/cm | ASTM D2148 |
| Water absorption | ＜0.9% | ASTM D4325 |
| Density | ＜1.3g/cm3 | GB/T 20631.2 |

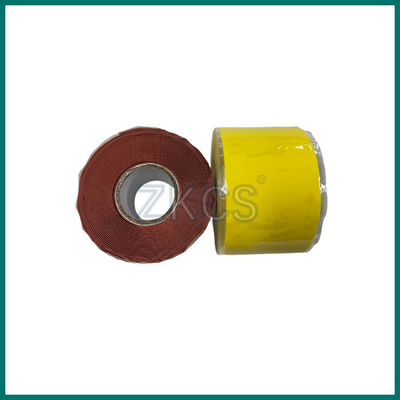

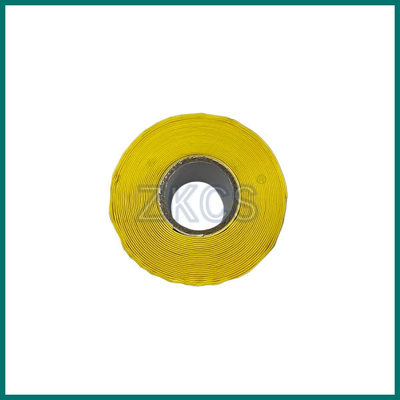

Product pictures for reference.
