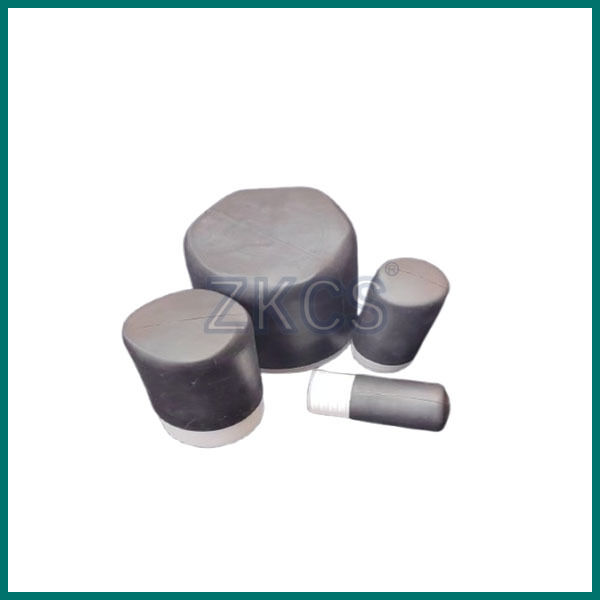

Product Description:
This Universal Weatherproof Sealing EPDM end cap is professionally designed for cable end termination protection. With premium EPDM raw material, it delivers permanent Universal Weatherproof Sealing performance for all kinds of cable ends.
It provides excellent insulation, waterproof and anti-UV ability, and maintains stable Universal Weatherproof Sealing in outdoor, underground and harsh environment.
The flexible EPDM structure ensures perfect fitting and tight Universal Weatherproof Sealing on EPR sheath cable, PVC cable, LSOH cable, lead sheath cable, armored wire and braided armored cable.
Simple installation without complex tools, once installed, it forms reliable Universal Weatherproof Sealing to prevent water, dust, ultraviolet and corrosion intrusion.
Long service life, aging resistance, all-weather use, always keep perfect Universal Weatherproof Sealing effect for cable end safety protection. Factory direct supply, stable quality, support bulk wholesale and customized size.
Product Features:
Made of high-quality EPDM material, aging resistant and long service life
Universal Weatherproof Sealing, fit all types of cable perfectly
Excellent waterproof, insulation, UV resistant and corrosion resistant performance
High flexibility, close fitting, no gap after installation
Easy and fast installation, no professional tools required
All-weather adaption, suitable for indoor and outdoor harsh environment
Dustproof, anti-leakage, effectively extend cable service life
Product Applications:
Suitable for end sealing protection of EPR sheath cable, PVC cable, LSOH cable
Applied to lead sheath cable, armored wire, braided armored cable end termination
Outdoor engineering, power distribution, communication cable end insulation sealing
Underground laying, overhead line, industrial equipment cable end protection
Construction, petrochemical, new energy power cable end sealing solution
| No |
Model |
Max. diameter (mm) |
Min. diameter (mm) |
Thickness After Shrink(±0.2mm) |

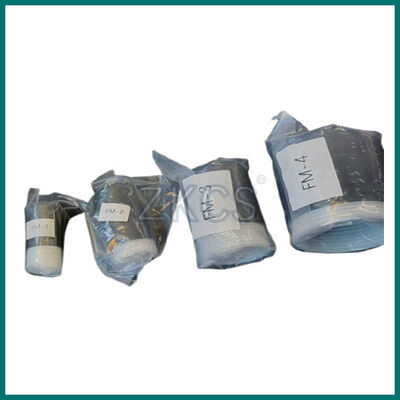

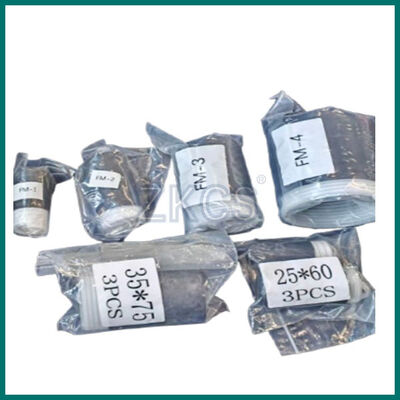

| FM-1 |
25×60L |
20.9 |
11.6 |
2.7 |
| FM-2 |
35×75L |
30.1 |
15.9 |
2.7 |
| FM-3 |
55×82L |
49.2 |
26 |
3.0 |
| FM-4 |
90×100L |
84.3 |
43.5 |
3.0 |
| Material technical parameters: |
| No |
Items |
Test method |
Unit |
Test standard |
Remarks |
| 1 |
Hardness (Shore A) |
GB/T 531.1-2009 |
Shore A |
43±5 |
|
| 2 |
Tensile strength |
GB/T 528-2009 |
Mpa |
8±3 |
|
| 3 |
Break elongation |
GB/T 528-2009 |
% |
800±200 |
|
| 4 |
Tear strength |
GB/T 529-2008 |
kN/mm |
38±5 |
|
| 5 |
Volume resistivity |
GB/T 2439-2001 |
Ω•cm |
≥1013 |
|
| 6 |
dielectric strength |
GB/T 1695-2005 |
MV/m |
≥18 |
|
| 7 |
dielectric Constant(50Hz) |
GB/T 1693-2007 |
/ |
≤8 |
|
FAQ
Q1: What kind of cables can this end cap fit?
A1: Our Universal Weatherproof Sealing EPDM end cap is compatible with EPR, PVC, LSOH, lead sheath, armored and braided armored cables, full range universal fit.
Q2: Does it have waterproof and UV resistant function?
A2: Yes, it adopts premium EPDM formula, with strong waterproof, insulation and anti-UV function, stable Universal Weatherproof Sealing for long-term outdoor use.
Q3: Is installation difficult?
A3: No tools needed, push-on design for quick installation, it can form tight Universal Weatherproof Sealing in seconds.
Q4: What environment can it be used in?
A4: It supports indoor, outdoor, underground and industrial harsh scenarios, always keeps perfect Universal Weatherproof Sealing and insulation protection.
Q5: Can you provide customized size?
A5: Yes, we support OEM size and color, keep the same excellent Universal Weatherproof Sealing performance.
