Product name :

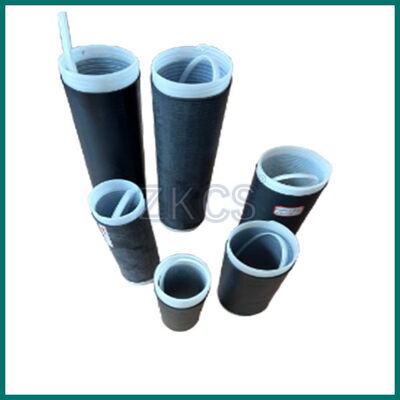

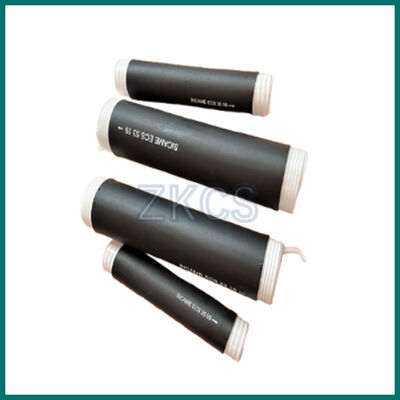

High Voltage Anti Aging EPDM Cold Shrink Tube Outdoor Cable Insulation
Product Description :
Our High Voltage Anti Aging EPDM Cold Shrink Tube is a high-performance insulating protective sleeve widely used in power industry, telecommunications industry and tool handle covers such as bicycle handles.This High Voltage Anti Aging cold shrink tube features excellent waterproof, acid and alkali resistance and tight sealing performance, ideal for low voltage sealing and insulation below 1KV.With outstanding weather resistance and UV aging resistance, our High Voltage Anti Aging EPDM cold shrink tube never becomes brittle after long-term outdoor service, better in puncture resistance, wear resistance and chemical stability than silicone cold shrink tube.
Product Features:
1.High Voltage Anti Aging formula realizes strong UV resistance, weather resistance and no brittleness for long time use.
2.High Voltage Anti Aging EPDM material owns superior puncture resistance, wear resistance and acid alkali resistance compared with silicone cold shrink tube.
3.High Voltage Anti Aging cold shrink design with perfect shrink fit, no gap and lasting tight sealing effect
4.Tough resilience, permanent close protection for cables
5.Easy installation, no heating and special tools required
6.Standard color: black, durable and practical
Product Application:

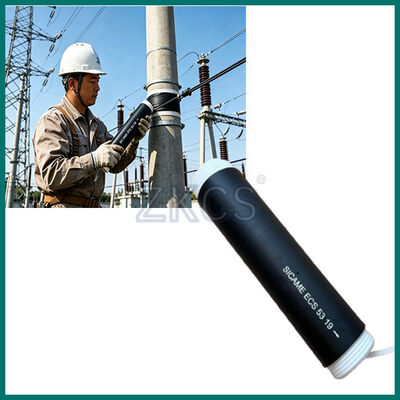

1.High Voltage Anti Aging EPDM Cold Shrink Tube for power industry cable insulation and sealing protection
2.High Voltage Anti Aging EPDM Cold Shrink Tube for telecommunications industry wire connection and outdoor wiring protection
3.High Voltage Anti Aging EPDM Cold Shrink Tube for bicycle handles, tool grip covers and daily hardware anti-slip protective sleeve
4.Suitable for all low-voltage power cable sealing and insulation within 1KV, wide applicable specification range
| Model |
Inner Diameter |
After shrink length |
Cable range Min.dia(mm) |
Cable range Max.dia(mm) |
| EPDM-csp-25-150 |
25mm |
150mm |
10.1 |
20.9 |
| EPDM-csp-25-203 |
25mm |
203mm |
10.1 |
20.9 |
| EPDM-csp-32-279 |
32mm |
279mm |
13 |
27 |
| EPDM-csp-35-279 |
35mm |
279mm |
13.9 |
30.1 |
| EPDM-csp-40-305 |
40mm |
305mm |
17.5 |
33 |
| EPDM-csp-53-152 |
53mm |
152mm |
20 |
46 |
| EPDM-csp-53-305 |
53mm |
305mm |
20 |
46 |
| EPDM-csp-58-250 |
58mm |
250mm |
24 |
49.3 |
| EPDM-csp-58-305 |
58mm |
305mm |
24 |
49.3 |
| EPDM-csp-77-305 |
77mm |
305mm |
32.2 |
67.8 |
| EPDM-csp-77-457 |
77mm |
457mm |
32.2 |
67.8 |
| EPDM-csp-105-229 |
105mm |
229mm |
42.6 |
93.7 |
| EPDM-csp-105-457 |
105mm |
457mm |
42.6 |
93.7 |
Technical data
| No. |
Item |
Test Method |
Test standard |
Remarks |
| 1 |
Color |
|
|
Black |
| 2 |
Hardness(Shore A) |
ISO 7619-1:2010 |
43±5Shore A |
|
| 3 |
Tensile strength |
GB/T528-2009 |
>8Mpa |
|
| 4 |
Break elongation |
GB/T528-2009 |
800±150% |
|
| 5 |
Tear strength |
GB/T528-2009 |
38±5 KN/mm |
|
| 6 |
Volume resistivity |
/ |
/ |
>1*1012ohm-cm |
| 7 |
Dieletric constant |
/ |
/ |
<5.0 |
FAQ
Q1:What is the main advantage of High Voltage Anti Aging EPDM Cold Shrink Tube?
A2:It has excellent UV anti-aging, weather resistance, never brittle in long-term outdoor use, and better puncture & acid alkali resistance than silicone cold shrink tube.
Q2:Where can High Voltage Anti Aging EPDM Cold Shrink Tube be used?
A2:It is widely applied in power industry, telecommunications industry, and also suitable for bicycle handles and tool grip protective sleeves, fit for 1KV and below cable insulation.
Q3:Is the sealing performance of High Voltage Anti Aging EPDM Cold Shrink Tube stable?
A3:Yes, it has strong resilience, fits closely without gaps, maintains excellent sealing and insulation effect for long-term service.
