Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal
Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal
Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal

Large Image :  Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 50pcs or 100pcs/carton
Delivery Time: 20-30days
Supply Ability: 200000pcs/month

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal

Description
Material: Silicone Rubber Color: Grey Or Black
Type: Cold Shrink Thickness: Customized
Name: Waterproof Seal Cable Terminal Grey High Voltage Outdoor Cold Shrink Termination Kit Product: Cold Shrink Cable Accessories
Certificate: ROHS Place Of Original: China
High Light:

Outdoor Cold Shrink Termination Kit

,

Waterproof Seal Grey Cable Terminal

,

High Voltage Cold Shrink Termination

Product name

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal





The Cold Shrinkable Termination offers easy installation and reliable performance when terminating indoor and outdoor medium voltage cables. Made from high quality, UV resistant, silicone rubber, the Cold Shrinkable Termination offers a combination of durability and high performance in the field.The products are designed to last the entire life of the cable. The terminations are designed to withstand voltages up to 35 kV.

Main structure features:
Excellent raw-material: prefabricated body is composed of high quality liquid silicone, which has excellent insulation, elongation, and breakdown properties, small residual deformation after expansion.
Cold shrinkable structure: using latest expansion equipment and expansion support tube to ensure product expand without damage.
Easy installation: using cold shrinkable expansion structure, there's no need special training, the labor is low due to convenient installation.

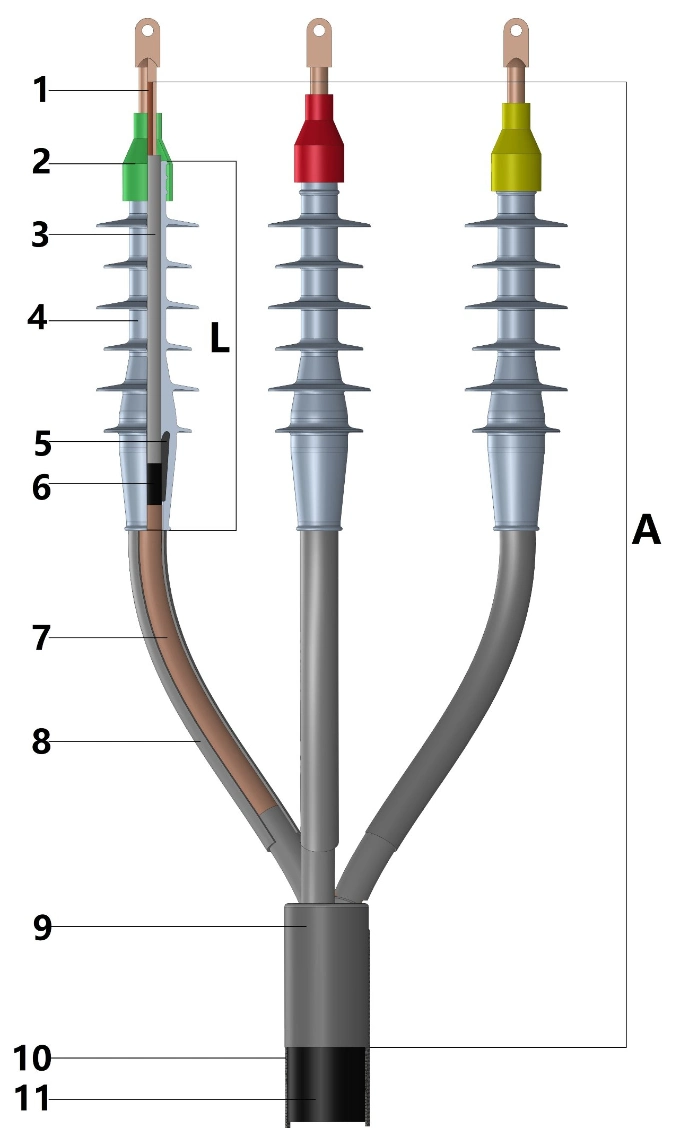

1~35kV Cold Shrinkable Outdoor Termination


Medium Volatge Cable Accessory 33kv Cold Shrinkable Outdoor Termination Kit

  1. Lug
  2.  Marking tube
  3.  Cable insulation
  4. Cold shrinkable termination
  5.  Stress cone
  6.  Insulation screen layer
  7.  Copper screen
  8. Cold shrinkable protective tube
  9. Three fingered tube
  10. Copper braid wire

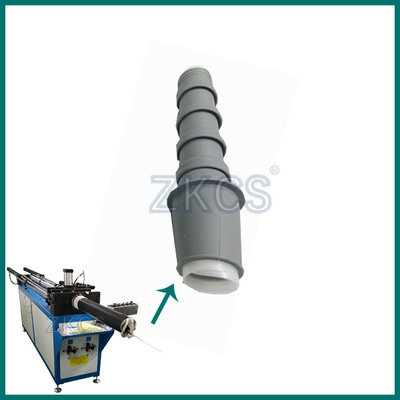

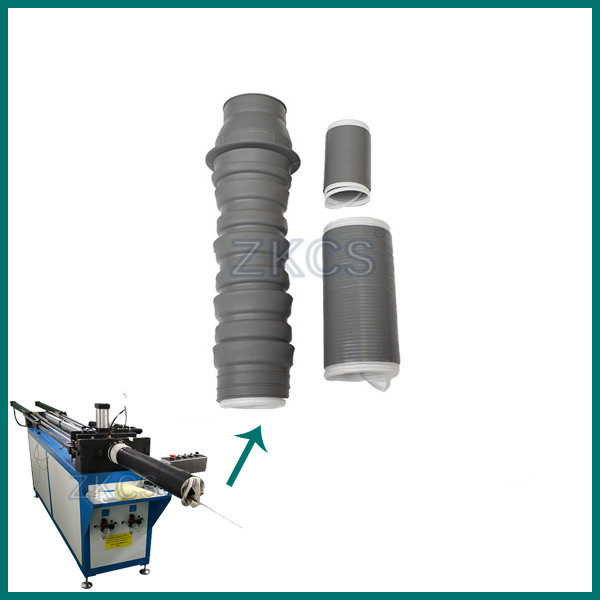

Picture for your reference.

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal 1

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal 2

Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal 3



Outdoor Cold Shrink Termination Kit Waterproof Seal Grey Cable Terminal 4



  • Applicable scope

    Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.

    Rubber Typical Properties



    Properties Test Method Typical Value
    Color / Black
    Ultimate Tensile ASTM D412-75 9.0MPa
    Ultimate Elongation ASTM D412-75 750%
    Tear Resistance ASTM D624C-73 30KN/m
    Fungus Resistance ASTM G21 28 days exposure No Growth
    Dielectric Strength ASTM D149-75 @1.75 Original 21KV/m
    7days in water at 90℃ 20.5KV/m
    Volume resistance ASTM D257 3.4×1015Ohm.cm


    All values are averages and are not intended for specification purposes.
