Outdoor MV Cable Termination Grey / Black For Silicone Rubber Cold Shrink Line

Product name

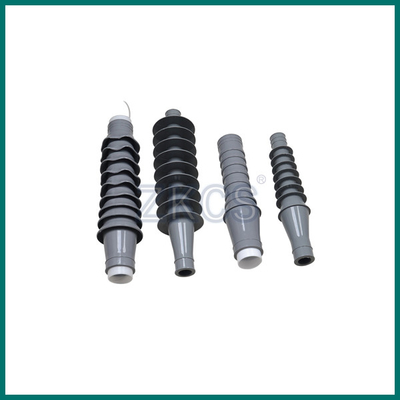

Outdoor Mv Cable Termination For Silicone Rubber Cold Shrink Line

Product description

The Cold Shrinkable Termination offers easy installation and reliable performance when terminating indoor and outdoor medium voltage cables. Made from high quality, UV resistant, silicone rubber, the Cold Shrinkable Termination offers a combination of durability and high performance in the field.The products are designed to last the entire life of the cable. The terminations are designed to withstand voltages up to 35 kV.

 Features:

1, the use of imported liquid silicone rubber to ensure excellent insulation and high flexibility, the installation of the cable body has always been to maintain a constant radial pressure, local discharge is small, with the cable body with the "breathing."

2, the terminal body with the cold shrink branch finger sets, cold shrink insulation tube and cold shrink terminal seal tube; intermediate connector with three waterproof sealing process to ensure that the annex excellent sealing moisture resistance.

3, the installation is simple, the operation of the technical dependence is low, easy to master. Cable pretreatment, the stripping distance is short, the installation space needs small. Grounding method using constant force spring fixed ground, no welding or copper tied line, more efficient, safe and reliable.

4, anti-pollution, anti-aging, good hydrophobicity, with excellent corrosion resistance, cold resistance and anti-ultraviolet, to ensure long-term use of stable performance. Especially for high altitude areas, cold areas, wet areas, salt fog areas and heavily polluted areas

• Applicable scope

  Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.

  Rubber Typical Properties



  Properties	Test Method	Typical Value
  Color	/	Black
  Ultimate Tensile	ASTM D412-75	9.0MPa
  Ultimate Elongation	ASTM D412-75	750%
  Tear Resistance	ASTM D624C-73	30KN/m
  Fungus Resistance	ASTM G21 28 days exposure	No Growth
  Dielectric Strength	ASTM D149-75 @1.75 Original	21KV/m
  	7days in water at 90℃	20.5KV/m
  Volume resistance	ASTM D257	3.4×1015Ohm.cm



  All values are averages and are not intended for specification purposes.
