Product Details:
|
| Color: | Black | Material: | EPDM |
|---|---|---|---|
| Diameter: | 80mm | Length: | 25'' |
| OEM: | EPDM Sleeve | Product Name: | Cold Shrink EPDM End Cap |
| High Light: | EPDM end cap,end caps,cold shrink EPDM end cap |
||

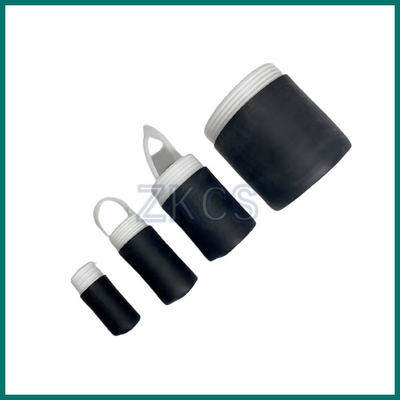

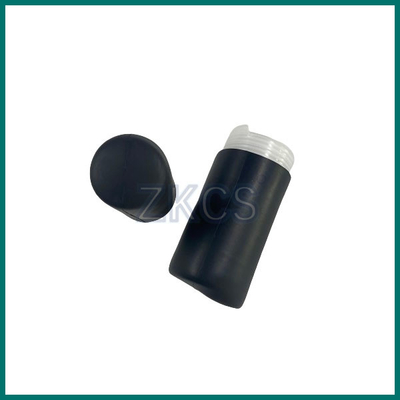

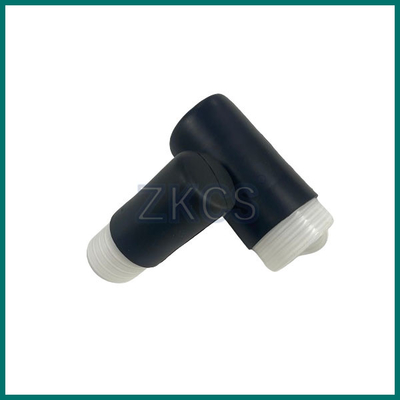

20.9mm up to 84.3mm cold shrink EPDM end cap for for capping cable ends
Applicable fields:
EPDM cold shrink tube: applied in electrical power industry, telecommunication industry or other tool product handle, eg. bicycle handle etc. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.
Specification for EPDM End Cap
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.5mm) | Length after shrink(mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 3.0 | 60+10mm |
| FM-2 | 35×75 | 30.1 | 15.9 | 3.0 | 75±10mm |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 | 82+10mm |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 | 100±10mm |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Features:
Continuous operating in cold and hight temperature
Suits for an extensive range of cable sizes because of the shrinkage
Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
Excellent tear resistance
Simple installation, requires no special heating tools , and adhesive to seal the connections

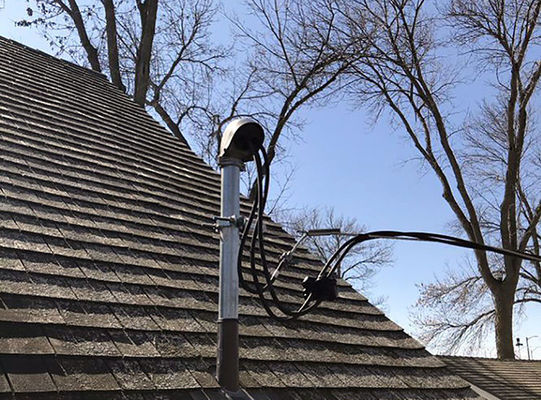

Application reference pic
