Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using

Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using
Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using
Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using

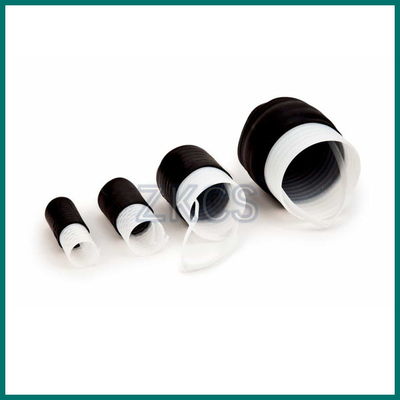

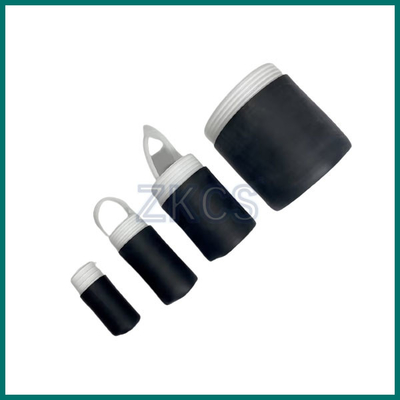

Large Image :  Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Certification: ISO9001
Model Number: EPDM-CPS-25-60
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotitaion
Packaging Details: 100pcs or 200pcs/carton
Supply Ability: 100000pcs/month

Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using

Description
Color: Black Material: EPDM
Diameter: 25-90 Length: 60-100
OEM: EPDM Sleeve Product Name: Cold Shrink EPDM End Cap
Tensile Strength: 8Mpa Break Elongation: 800%
High Light:

epdm cold shrink end caps

,

Cold End Caps

,

Cold Shrink End Caps

Description:

Product name:Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using



Black EPDM Cold End Caps Applicable fields:



EPDM Cold End Caps creates a watertight seal around cables or pipes.
Protect cables, pipes and other cylindrical objects from exposure to moisture, contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards.





No Model Max. diameter (mm) Min. diameter (mm) Thickness After Shrink(±0.2mm)
FM-1 25×60 20.9 11.6 2.7
FM-2 35×75 30.1 15.9 2.7
FM-3 55×82 49.2 26 3.0
FM-4 90×100 84.3 43.5 3.0



Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5
2 Tensile strength GB/T 528-2009 Mpa 8±3
3 Break elongation GB/T 528-2009 % 800±200
4 Tear strength GB/T 529-2008 kN/mm 38±5
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013
6 dielectric strength GB/T 1695-2005 MV/m ≥18
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8



Features:



Simple and fast installation, no tools required.
Accommodates size ranges from 11.6mm – 84.3mm.
Seals tight, retains resiliency and pressure even after prolonged years of ageing and exposure.
Water-resistant.
No mastic or tape required.
No torches or heat required.
Resists fungus.
Resists acids and alkalis.
Resists ozone.
Easily removed.
No training required for installation.



Application reference pic



Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using 0



Black EPDM Cold End Caps for environmentally seal and mechanically protect exposed cable ends using 1







FAQ

1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.

4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian

Shipment: express, sea and air shipping
