Product Details:
|
| Color: | Black Or Customized | Material: | EPDM |
|---|---|---|---|
| Diameter: | 25-105mm | Length: | 150-457mm Or Customized |
| Product Name: | Black 1kv Low Voltage EPDM Silicone Rubber Cold Shrink Tube | ||
| Highlight: | Alkali Resistance EPDM Cold Shrink tube,Acid Resistance EPDM Cold Shrink tube,EPDM Cold Shrink tube |
||
Description:

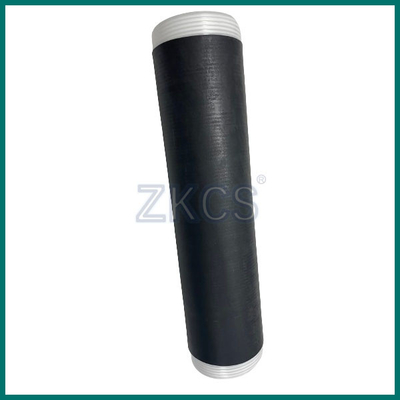

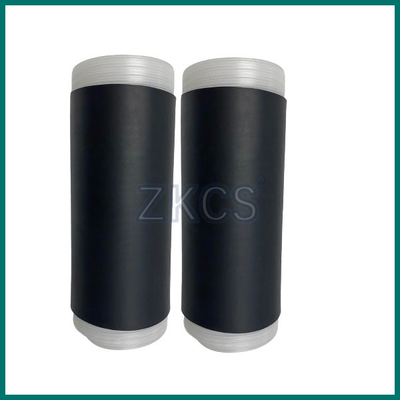

Black EPDM epdm cold shrink tubing for electrical insulation and watertight sealing of cable connections,
which are made of EPDM rubber sleeve which is expanded onto a removable core. When the core is removed the EPDM rubber will return to its original size. FiloShrink offers a good mechanical protection, electrical insulation and watertight sealing of cable connections.
Features:
*It is more resistant to weather,ultraviolet aging,and does not become brittle after long term use.
*Compared with silicone cold shrink tubes,it is more resistant to punctures ,waterproof ,acid and alkali
*No gaps and tight sealing
*The sealing effect is still excellent.
Application:
It is used for the power electric,telecommunication industry or other tool product handles,such as bicycle handles,etc.With good performance,waterproof ,acid and alkali resistance,sealing,protective sleeve and low-voltage sealing insulation below 1KV.
| Model | Inner Diameter | After shrink length | Cable range Min.dia(mm) | Cable range Max.dia(mm) |
| EPDM-csp-25-150 | 25mm | 150mm | 10.1 | 20.9 |
| EPDM-csp-25-203 | 25mm | 203mm | 10.1 | 20.9 |
| EPDM-csp-32-279 | 32mm | 279mm | 13 | 27 |
| EPDM-csp-35-279 | 35mm | 279mm | 13.9 | 30.1 |
| EPDM-csp-40-305 | 40mm | 305mm | 17.5 | 33 |
| EPDM-csp-53-152 | 53mm | 152mm | 20 | 46 |
| EPDM-csp-53-305 | 53mm | 305mm | 20 | 46 |
| EPDM-csp-58-250 | 58mm | 250mm | 24 | 49.3 |
| EPDM-csp-58-305 | 58mm | 305mm | 24 | 49.3 |
| EPDM-csp-77-305 | 77mm | 305mm | 32.2 | 67.8 |
| EPDM-csp-77-457 | 77mm | 457mm | 32.2 | 67.8 |
| EPDM-csp-105-229 | 105mm | 229mm | 42.6 | 93.7 |
| EPDM-csp-105-457 | 105mm | 457mm | 42.6 | 93.7 |
Technical data
| No. | Item | Test Method | Test standard | Remarks |
| 1 | Color | Black | ||
| 2 | Hardness(Shore A) | ISO 7619-1:2010 | 43±5Shore A | |
| 3 | Tensile strength | GB/T528-2009 | >8Mpa | |
| 4 | Break elongation | GB/T528-2009 | 800±150% | |
| 5 | Tear strength | GB/T528-2009 | 38±5 KN/mm | |
| 6 | Volume resistivity | / | / | >1*1012ohm-cm |
| 7 | Dieletric constant | / | / | <5.0 |
Black 1kv Low Voltage EPDM Cold Shrink Sleeve for cable sealing in power industy
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping
