24kV 3-Core Cold Shrink Straight Cable Joint Kit XLPE Power Cable Connector 70-120mm² EPDM Rubber

24kV 3-Core Cold Shrink Straight Cable Joint Kit XLPE Power Cable Connector 70-120mm² EPDM Rubber 24kV 3-Core Cold Shrink Straight Cable Joint Kit XLPE Power Cable Connector 70-120mm² EPDM Rubber 24kV 3-Core Cold Shrink Straight Cable Joint Kit XLPE Power Cable Connector 70-120mm² EPDM Rubber
Product Details:
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, IEC 60502-4
Model Number: CSJ-24/3C-120
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: USD 25-55 / Set
Packaging Details: Standard export carton with inner EPE foam cushion, waterproof PE vacuum bag, plywood pallet
Delivery Time: 5-15 working days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 Sets per Month
Contact Now Chat Now

24kV 3-Core Cold Shrink Straight Cable Joint Kit XLPE Power Cable Connector 70-120mm² EPDM Rubber

Description
Rated Voltage: 24kV (Um=25kV) Conductor Size: 70-120mm²
Number Of Cores: 3-Core Insulation Material: EPDM Rubber
Connector Type: Straight Through Joint Cable Type: XLPE Power Cable
Installation Method: Cold Shrink (No Heat Required) Operating Temperature: -40°C To +90°C
Short Circuit Rating: 40kA / 1 Sec Impulse Withstand Voltage: 125kV Peak
Highlight:

24kV Cold Shrink Cable Joint

,

EPDM Rubber Straight Connector

,

XLPE Power Cable Joint Kit

24kV Cold Shrink Straight Cable Joint Kit – 3-Core XLPE Power Cable Connector

Product Overview

The WNRLN CSJ-24/3C-120 is a high-performance 24kV cold shrink straight cable joint kit engineered for 3-core XLPE insulated power cables with conductor sizes ranging from 70mm² to 120mm². Designed for medium voltage distribution networks, this joint kit provides reliable, long-term electrical and mechanical protection in underground, trench, and substation installations.

Key Features

  • True Cold Shrink Technology – One-piece EPDM rubber body pre-stretched on a removable spiral core. Simply pull out the core after positioning – no heat, no gas torch, no special tools required.
  • 24kV Rated Voltage – Designed and tested for 24kV (Um=25kV) medium voltage power distribution systems, meeting IEC 60502-4 standards.
  • 3-Core Straight Joint – Integrates three-phase conductor connection, insulation, shielding, and outer sealing in one compact assembly.
  • EPDM Rubber Insulation – Ethylene Propylene Diene Monomer provides excellent electrical insulation, UV resistance, ozone resistance, and thermal stability from -40°C to +90°C.
  • Wide Conductor Range – Compatible with 70mm² to 120mm² sector-shaped or round stranded copper/aluminum conductors.
  • Integrated Stress Control – Built-in geometric stress cones ensure uniform electric field distribution, eliminating partial discharge risks.
  • IP68 Waterproof Sealing – Triple-layer sealing system with silicone mastic tape and outer EPDM jacket provides complete moisture ingress protection for direct burial applications.
  • Fast Field Installation – Typical installation time under 45 minutes per joint for a trained crew, significantly faster than heat-shrink or resin-based alternatives.

Applications

  • Medium voltage underground distribution networks (24kV class)
  • Wind farm collector grid cable connections
  • Industrial plant MV power distribution
  • Utility substation cable interconnections
  • Cable repair and extension projects
  • Mining and tunnel power supply systems

Technical Specifications

Rated Voltage (U0/U)12/20kV (24kV class, Um=25kV)
Conductor Size Range70mm² – 120mm²
Number of Cores3-Core
Insulation MaterialEPDM Rubber (Ethylene Propylene Diene Monomer)
Connector TypeStraight Through Joint (In-line)
Cable Insulation TypeXLPE (Cross-Linked Polyethylene)
Installation MethodCold Shrink – Pull-out Core, No Heat Required
Operating Temperature-40°C to +90°C (Continuous)
Short Circuit Thermal Rating40kA / 1 second
Impulse Withstand Voltage125kV Peak (1.2/50μs waveform)
Power Frequency Withstand55kV / 5 minutes
Partial Discharge<10pC at 1.73U0 (20.7kV)
Ingress ProtectionIP68 (Submersion Ready)
Standards ComplianceIEC 60502-4, IEEE 404

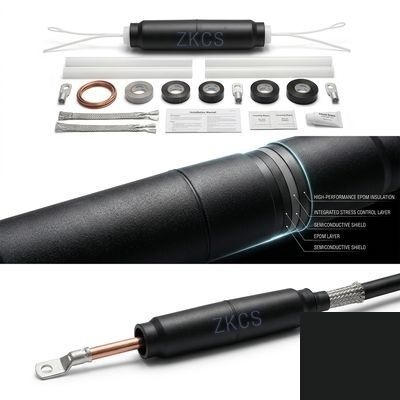

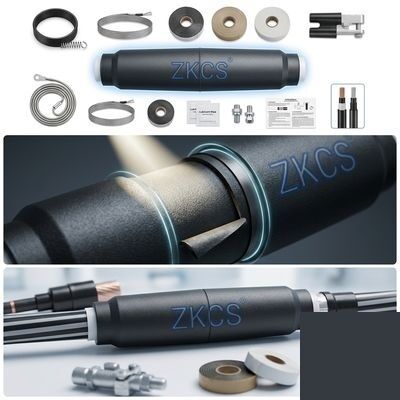

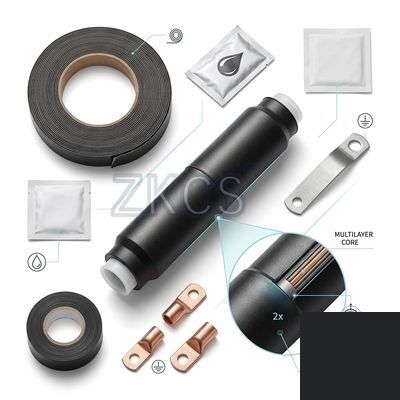

Kit Contents

  • 3 x Cold Shrink Straight Joint Bodies (EPDM, one per phase)
  • 1 x Cold Shrink Outer Jacket Sleeve
  • 3 x Shear Bolt Connectors (tinned copper, for 70-120mm² conductors)
  • 1 x Roll Silicone Mastic Sealing Tape
  • 3 x Copper Mesh Screen Socks
  • 1 x Constant Force Spring Set (for screen continuity)
  • 1 x Roll Abrasive Cloth
  • 3 x Cleaning Wipes
  • 1 x Installation Instruction Manual

Quality Assurance

Every WNRLN cold shrink cable joint undergoes 100% routine testing including partial discharge measurement, AC voltage withstand, and dimensional inspection before shipment. Our ISO 9001:2015 certified manufacturing facility ensures consistent quality across every production batch. Type test reports per IEC 60502-4 are available upon request.

Contact our sales team today for pricing, technical datasheets, or to discuss your specific cable joint requirements. OEM and custom branding available for volume orders.
