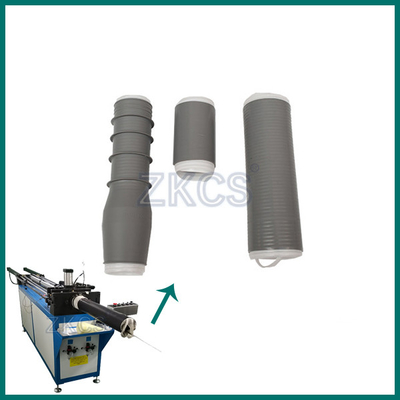

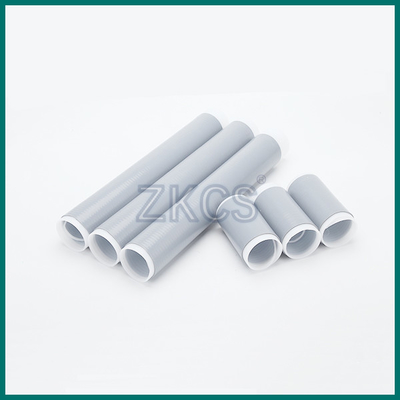

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube
24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube
24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube

Large Image :  24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 50pcs or 100pcs/carton
Delivery Time: 20-30days
Supply Ability: 200000pcs/month

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube

Description
Material: Silicone Rubber Color: Grey Or Black
Type: Cold Shrink Thickness: Customized
Name: 24kv Indoor Cold Shrink Termination Product: Cold Shrink Cable Accessories
Certificate: ROHS Sample Time: 5-7days
High Light:

Insulation Seal Short Cold Shrink Termination

,

N Type Connector Cold Shrink Termination

,

24kv Cold Shrink Termination

Product name

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube



Product description

The cold shrink termination It mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced thchnology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installaion, and the elastomer will rapidly shrink and appress to the installation position.



    Features:

  • 1, widely used in low-voltage cable terminal processing;
  • 2, to maintain a constant tightening force, with the cable with the breath, to ensure excellent interface characteristics.
  • 3, advanced production technology, vacuum high pressure injection vulcanization molding. Internal structure perfect, no defects, in the 21KV below the Council put less than 1pc (8.7 / 15KV series).
  • 4, without fire and special tools, and no gradually into the trouble, just gently extract the core rope, it will rely on their own elastic retraction, which closely close to the cable, each specification can be applied to a variety of cable Diameter, cable diameter compatibility.

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 0

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 1

24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 2



24kv Indoor Cold Shrink Termination N Type Connector Insulation Tube 3



  • Applicable scope

    Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.

    Rubber Typical Properties



    Properties Test Method Typical Value
    Color / Black
    Ultimate Tensile ASTM D412-75 9.0MPa
    Ultimate Elongation ASTM D412-75 750%
    Tear Resistance ASTM D624C-73 30KN/m
    Fungus Resistance ASTM G21 28 days exposure No Growth
    Dielectric Strength ASTM D149-75 @1.75 Original 21KV/m
    7days in water at 90℃ 20.5KV/m
    Volume resistance ASTM D257 3.4×1015Ohm.cm


    All values are averages and are not intended for specification purposes.

    FAQ

    1. Who are we?
    We are professional in cold shrink industry,which including silicone/EPDM/inner mastic cold shrink tube and cold shrink cable aceesories .

    ZKCS are always persuit good quality and striving for upgrade products.



    2. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;


    3.Whats your MOQ?

     we can accpeted small order


    4. Why should you buy from us not from other suppliers?
    Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.


    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
