Product Details:
|
| Color: | Black | Type: | Cable Accessories |
|---|---|---|---|
| Material: | EPDM | Application: | Low & Middle Voltage |
| Length: | 225mm | Diameter: | 70mm |
| High Light: | 250A dead break connector,225mm dead break connector,250A straight tube connector |
||

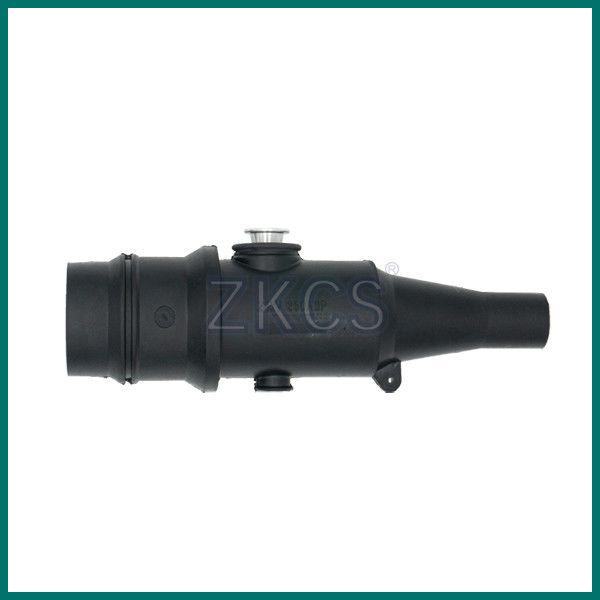

Cable Accessories Of 10kv Straight-Through Connector For Cable Cross-Section 25-120mm2
RY BZTT-10/250 straight-through cable connector is a fully insulated, fully sealed, fully shielded live and touchable cable connector. The product is suitable for cable cross-section 25-120mm, and the interface size meets EN50180/50181250 standard A interface, commonly used in European ring network cabinets unit.
Applicable fields:
The straight-through cable connector can be applied to the 12kv or 24kV SF6 ring main unit "load switch + fuse combination electrical" unit (such as Schneider's RM6 series Q unit) to match the outlet casing.
Electrical Performance
| Description | Technical Parameters |
| Rated voltage | 10kV |
| Rated current | 250A |
| Maximum phase-to-phase voltage | 12kV |
| 5 minutes power frequency withstand voltage | 39 kV |
| Partial Discharge | Q≤10pC@15 kV |
| Lightning impulse withstand voltage | 95 kV |
| Short-time withstand current | 3.5kA,3s |
| Dynamic stability current | 10kA |
| Guideline:GB/T12706.4,IEC60502-4 | |
Product Dimensions Ref:
