EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry

EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry
EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry
EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry

Large Image :  EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry

Product Details:
Place of Origin: CHINA
Brand Name: ZKCS
Model Number: ZK-RYMP2-10/630
Payment & Shipping Terms:
Minimum Order Quantity: 100kits
Packaging Details: 10kits carton
Delivery Time: 10-20days
Supply Ability: 50000kits

EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry

Description
Color: Grey Type: Cable Accessories
Material: EPDM Application: Power Plant
Ratio Current: 630A Voltage: 10kv
High Light:

10kV Cold Shrink Cable Accessories

,

63kA Cold Shrink Cable Accessories

Cable Accessories Of 630A EPDM Double-Pass Busbar Series Products For Power Industry Usage

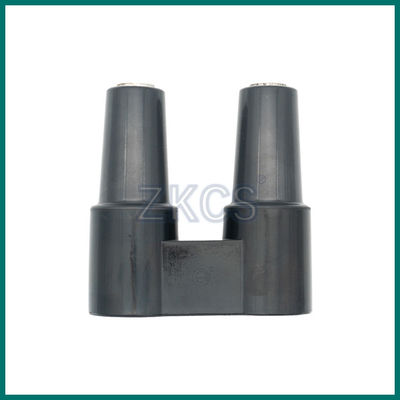

RY MP2-10/630 double-pass busbar is made of imported high-quality EPDM rubber in one injection molding, which acts as a busbar in the cable branch circuit, which can realize the function of wire in while wire out, or realize the function of extending the wire.



Applicable fields:

The product is small and compact, and the interface size conforms to the standard C-type interface. It is widely used in the underground branch box in the cable trench.



Electrical Performance

Description Technical Parameters
Rated voltage 10kV
Rated current 630A
5 minutes power frequency withstand voltage 39 kV
Partial Discharge Q≤10pC@15 kV
Lightning impulse withstand voltage 95 kV
Short-time withstand current 20kA
Peak withstand current 63kA
Guideline:GB/T12706.4,IEC60502.4



Dimensions

EPDM Double Pass Busbar 63kA Cold Shrink Cable Accessories 10kV For Power Industry 0
